Compact 90 Degree Elbow for DeWALT Miter Saws
Compact 90 Degree Elbow for DeWALT Miter Saws
Couldn't load pickup availability

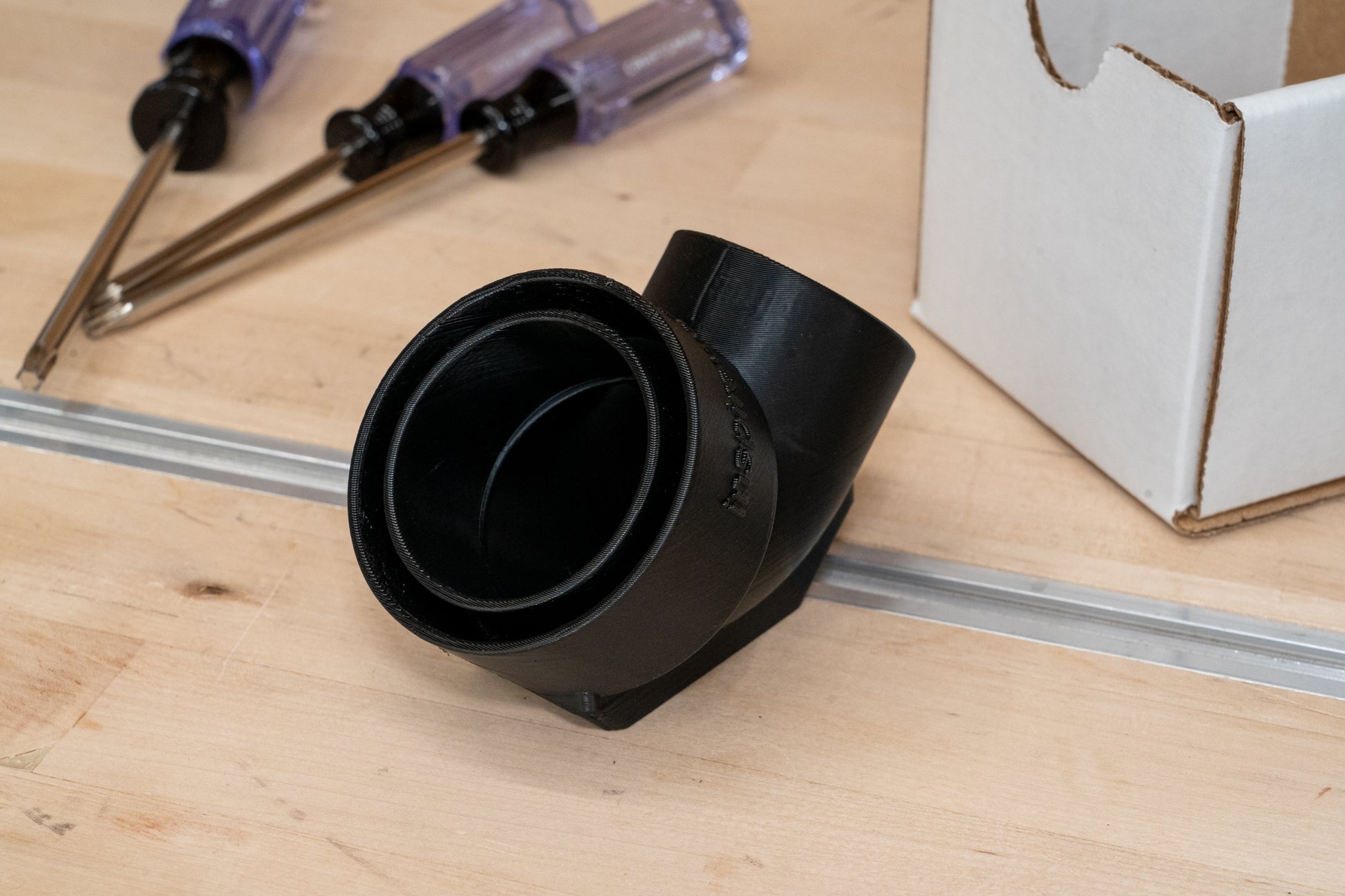

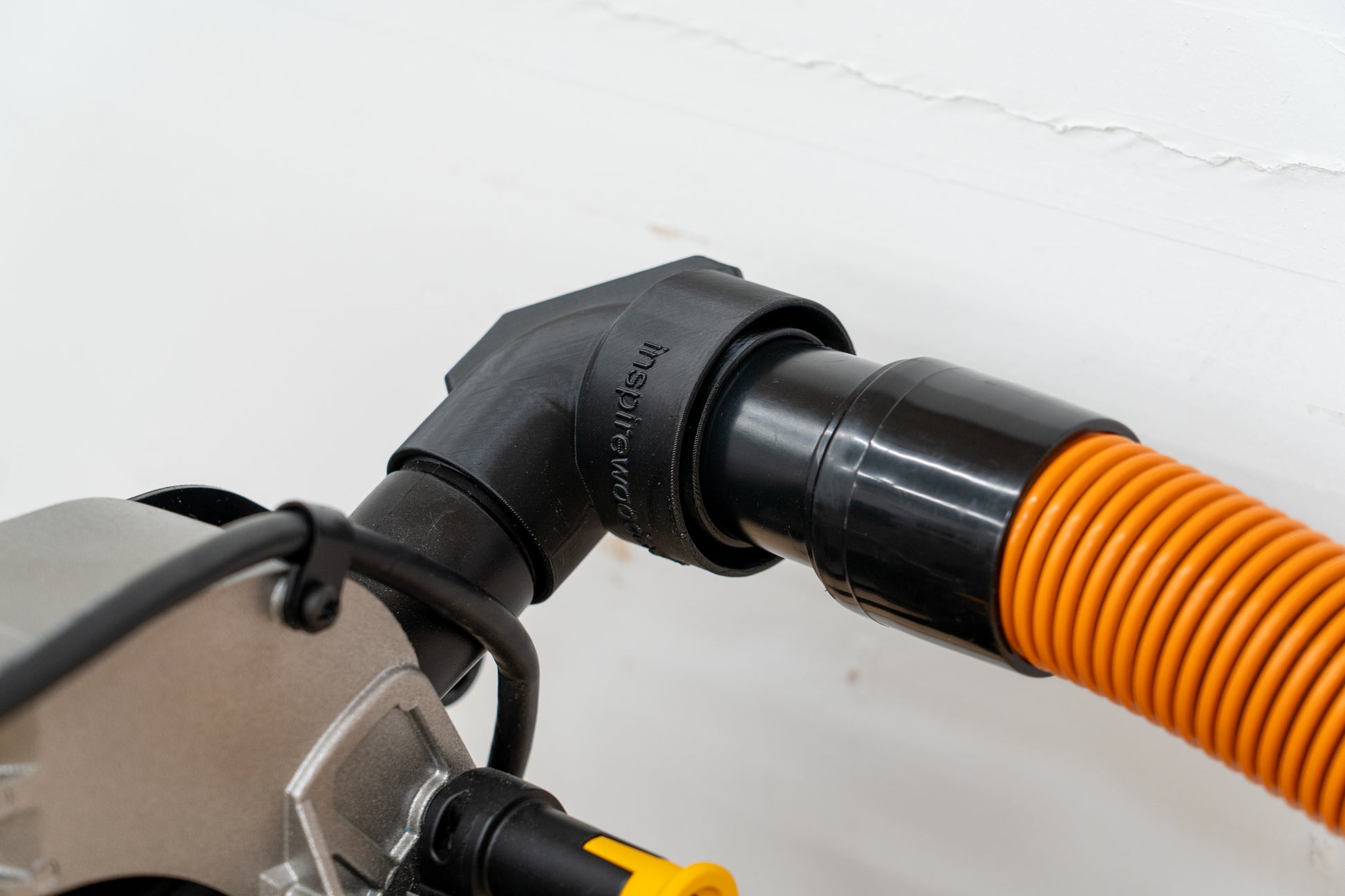

Get your DeWALT miter saw as close to the wall as possible with this ultra compact 90-degree elbow.

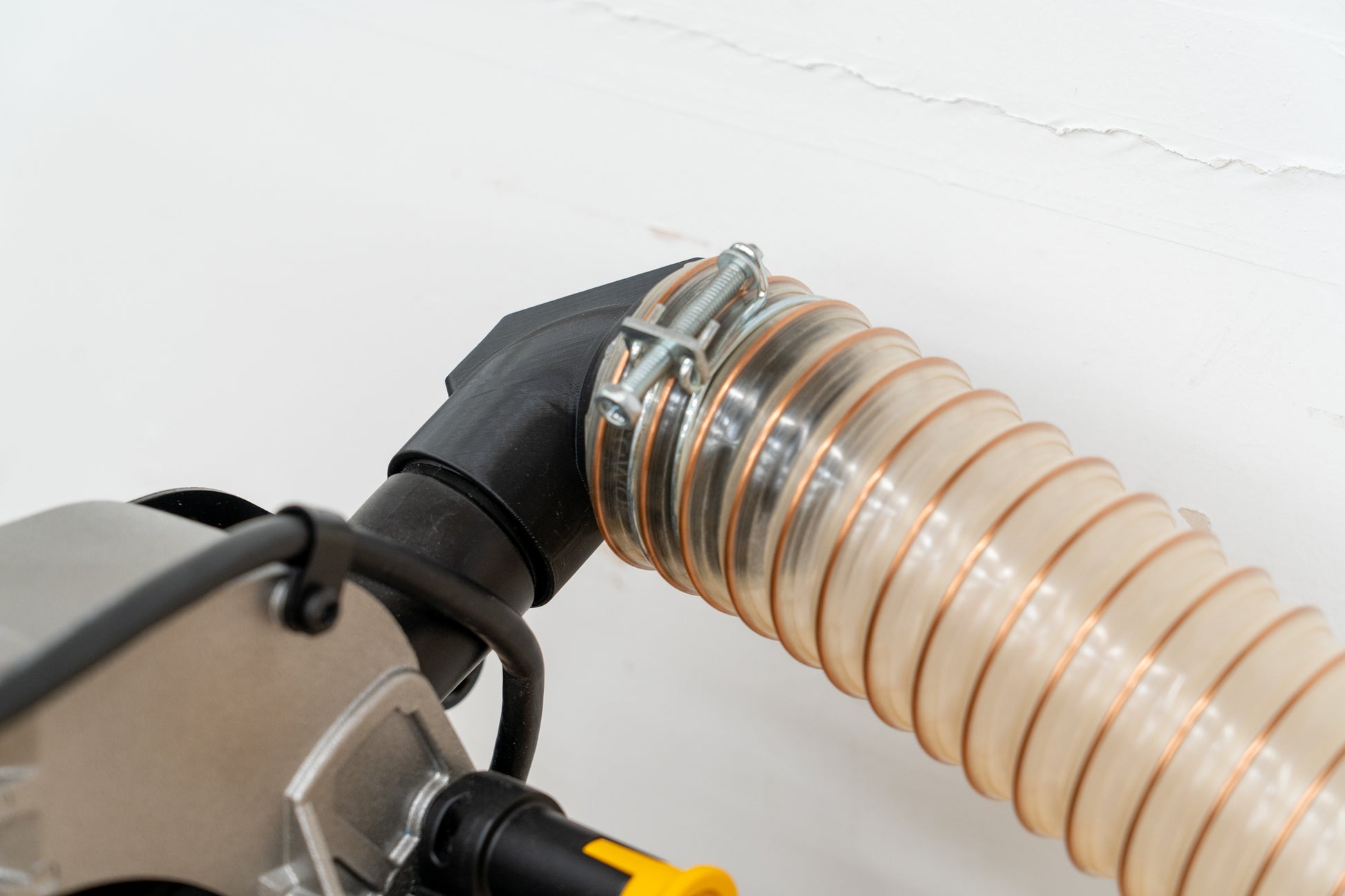

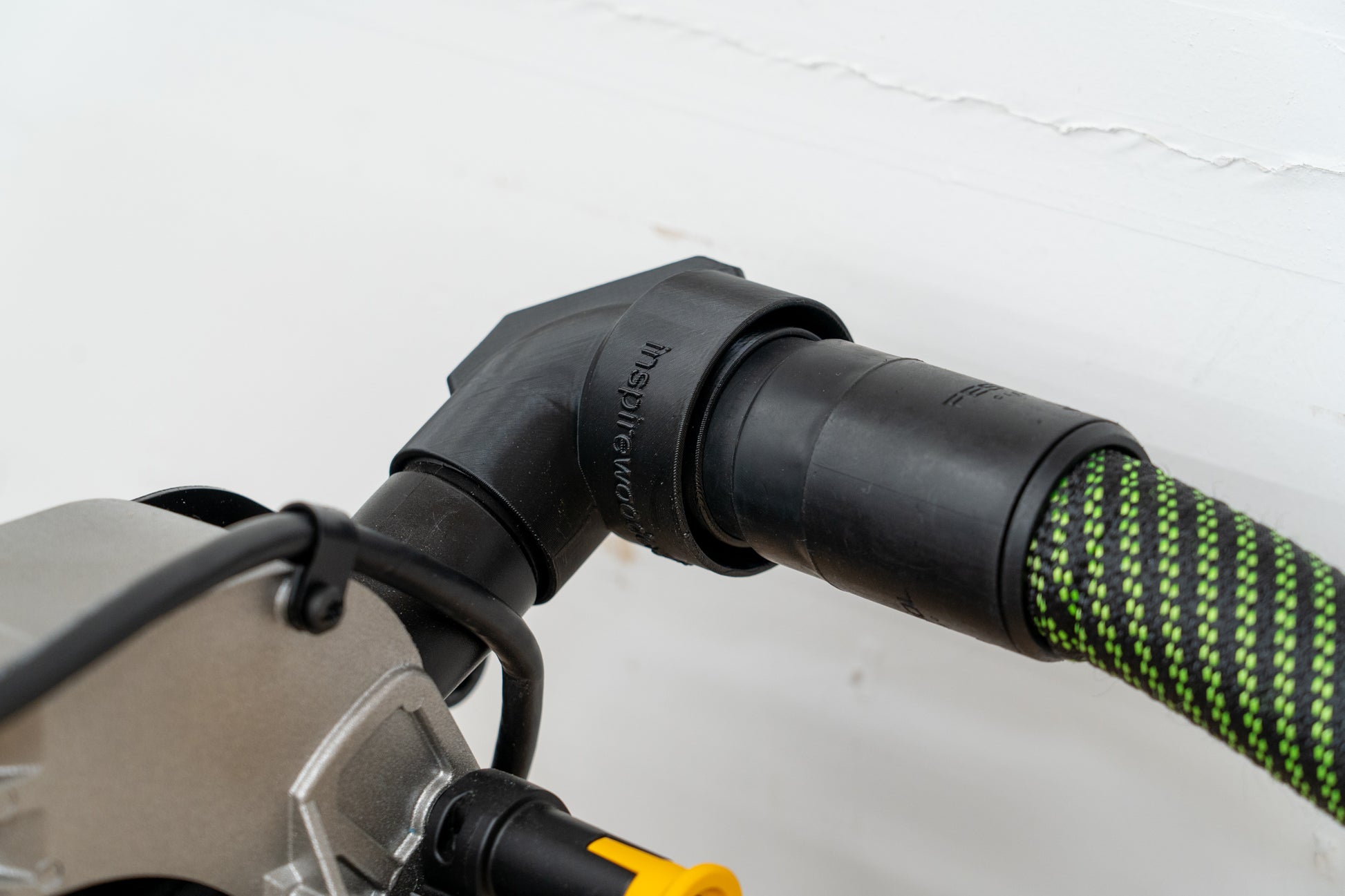

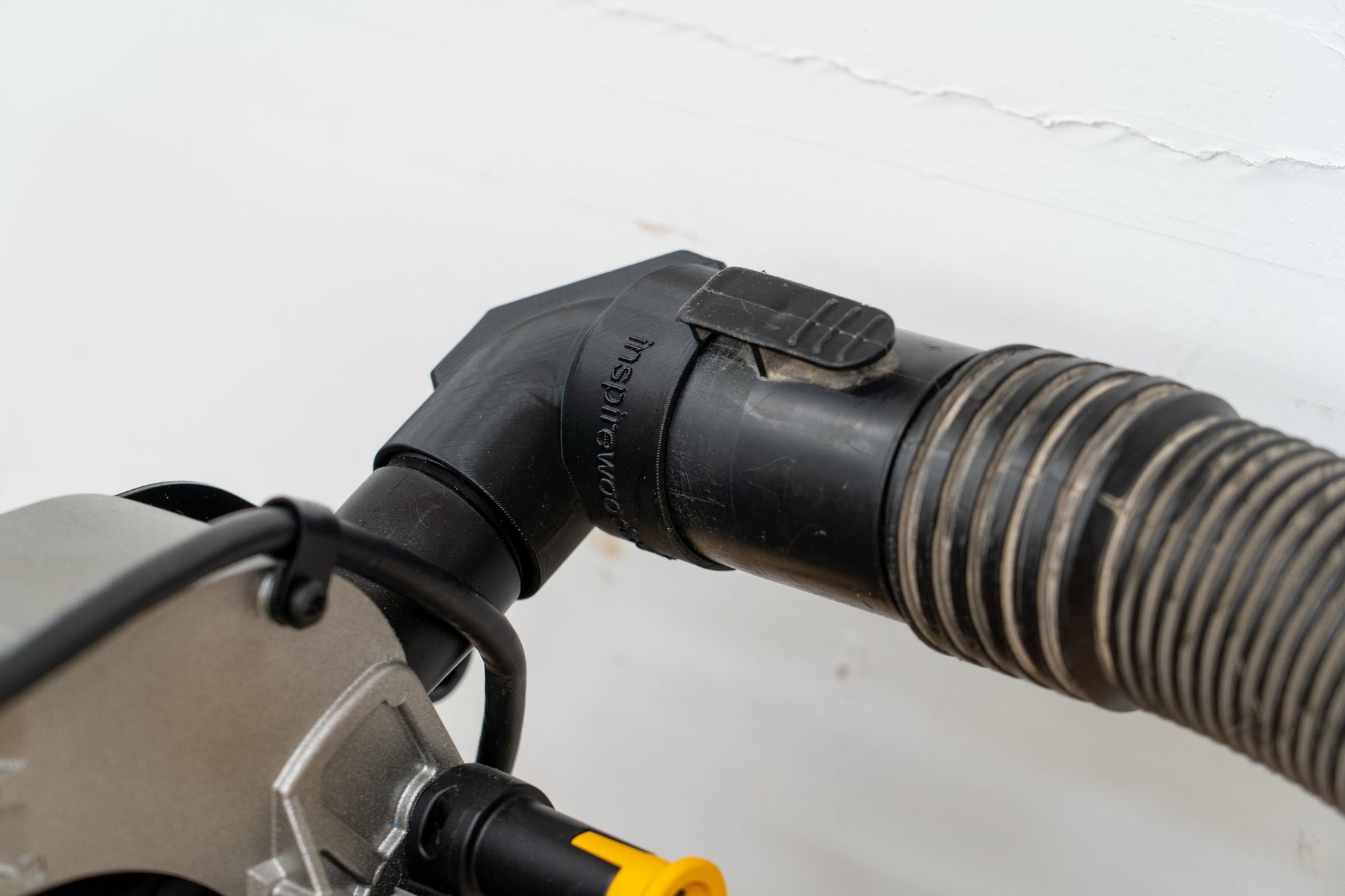

Connects to multiple vacuum hose types, including 2-1/2" dust collection hose, standard 2-1/2" shop vacuum hose, standard 1-7/8" shop vacuum hose and Festool 36mm antistatic hose. All internal fittings are tapered for a more secure fit from a wider range of brands. This elbow has been tested with various hoses, both new and old, from several popular brands, but there may be certain situations where hoses still don't fit perfect. While it's designed to fit very snug on the outside of 1-5/8" ports, taping is still recommended on the sliding saws, if necessary, as those ports are a little bit shorter.

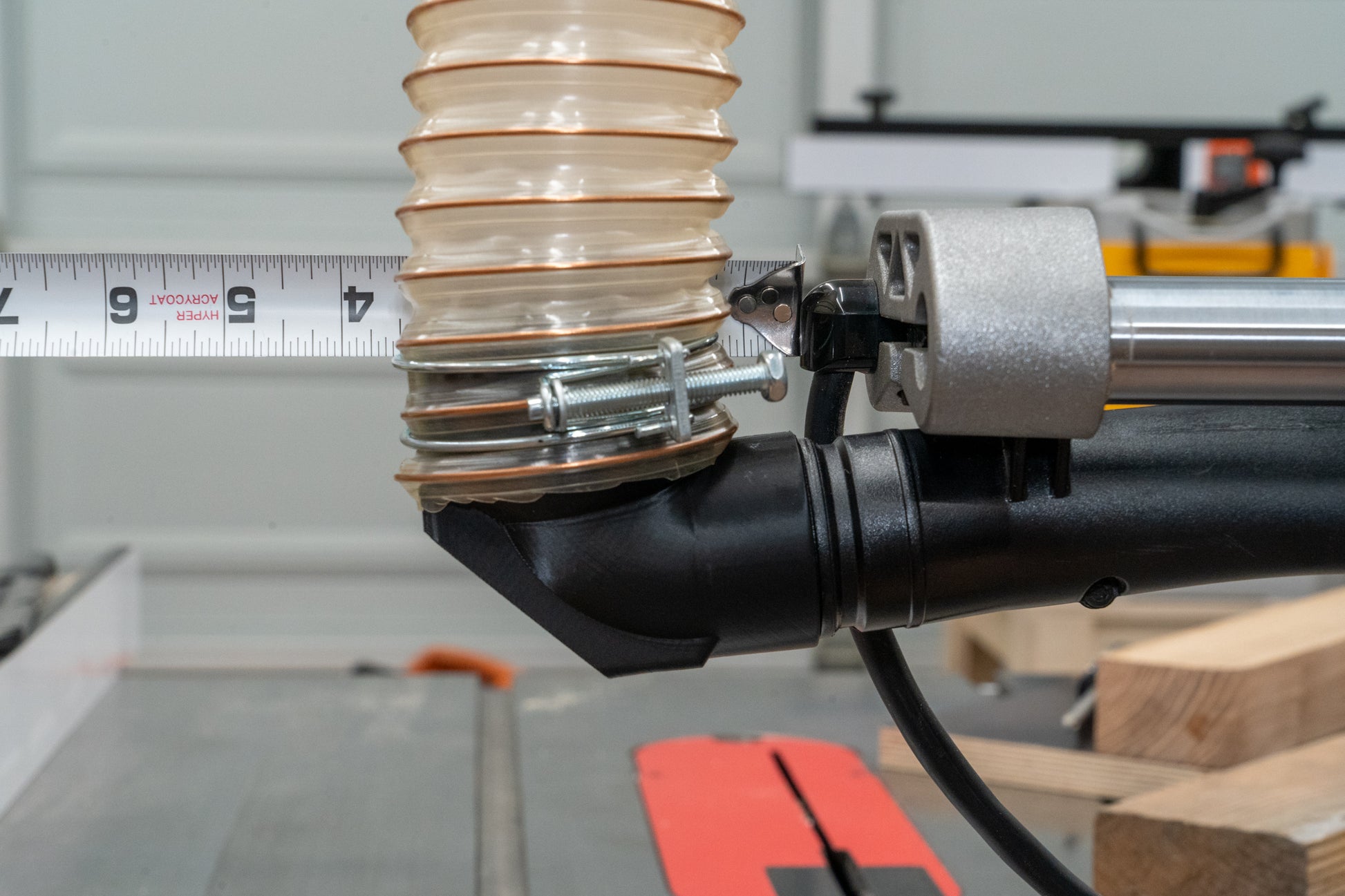

This elbow will fit DeWALT miter saws with an 1-5/8" dust port. This has been tested and confirmed to fit DW715, DWS715, DW716, DWS716, DWS779, DWS780. (Should also fit DHS790.)
PLEASE NOTE: When this elbow is purchased by itself, it is shipped with an adapter that is designed to fit the dust ports on older style DeWALT saws. The adapter is placed inside the vacuum side of the elbow for shipping purposes. The adapter also ships with the purchase of the Ultimate Dust Collection Kit for "DW" saws.
3D printed using PETG filament.
Share

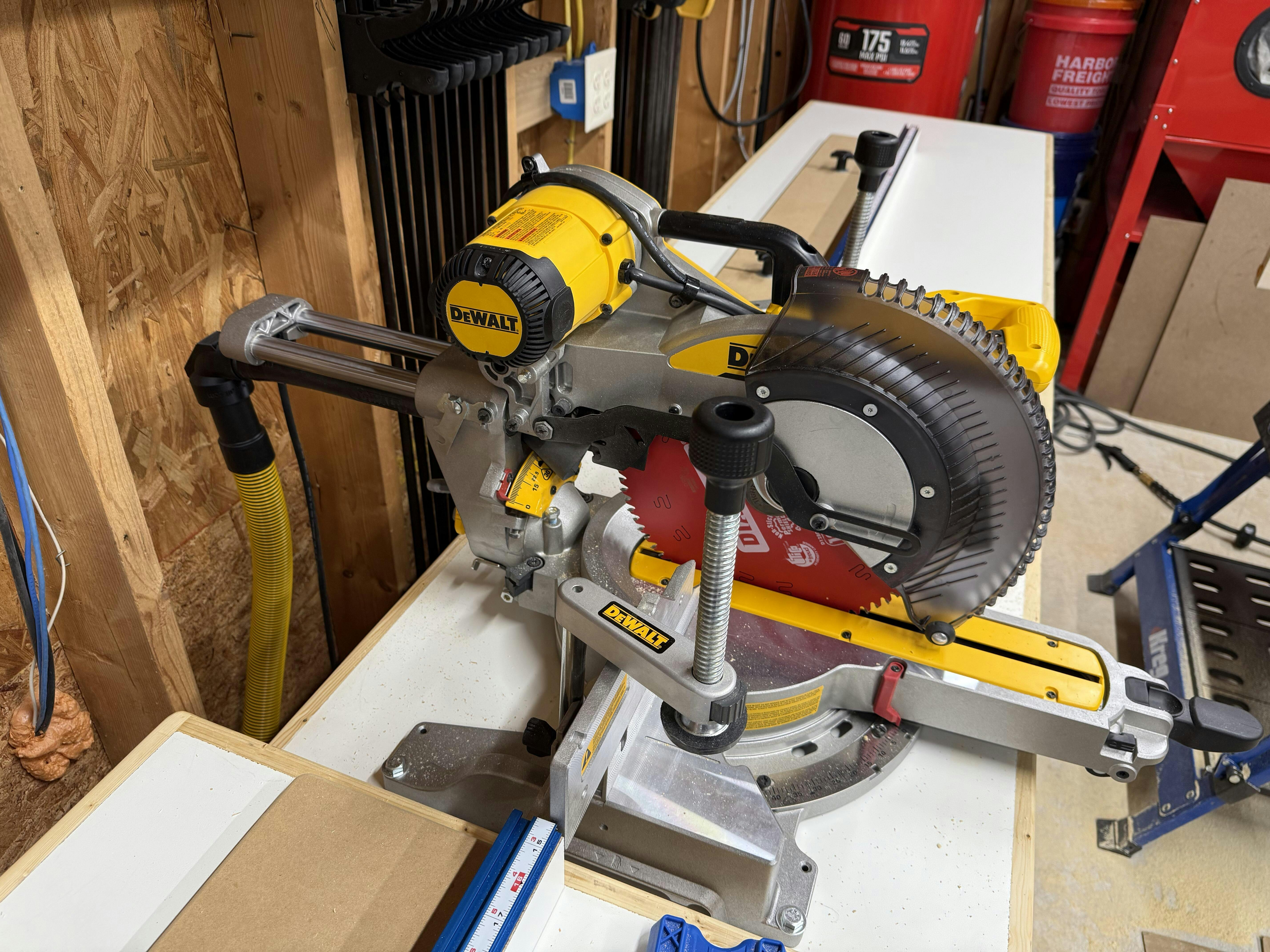

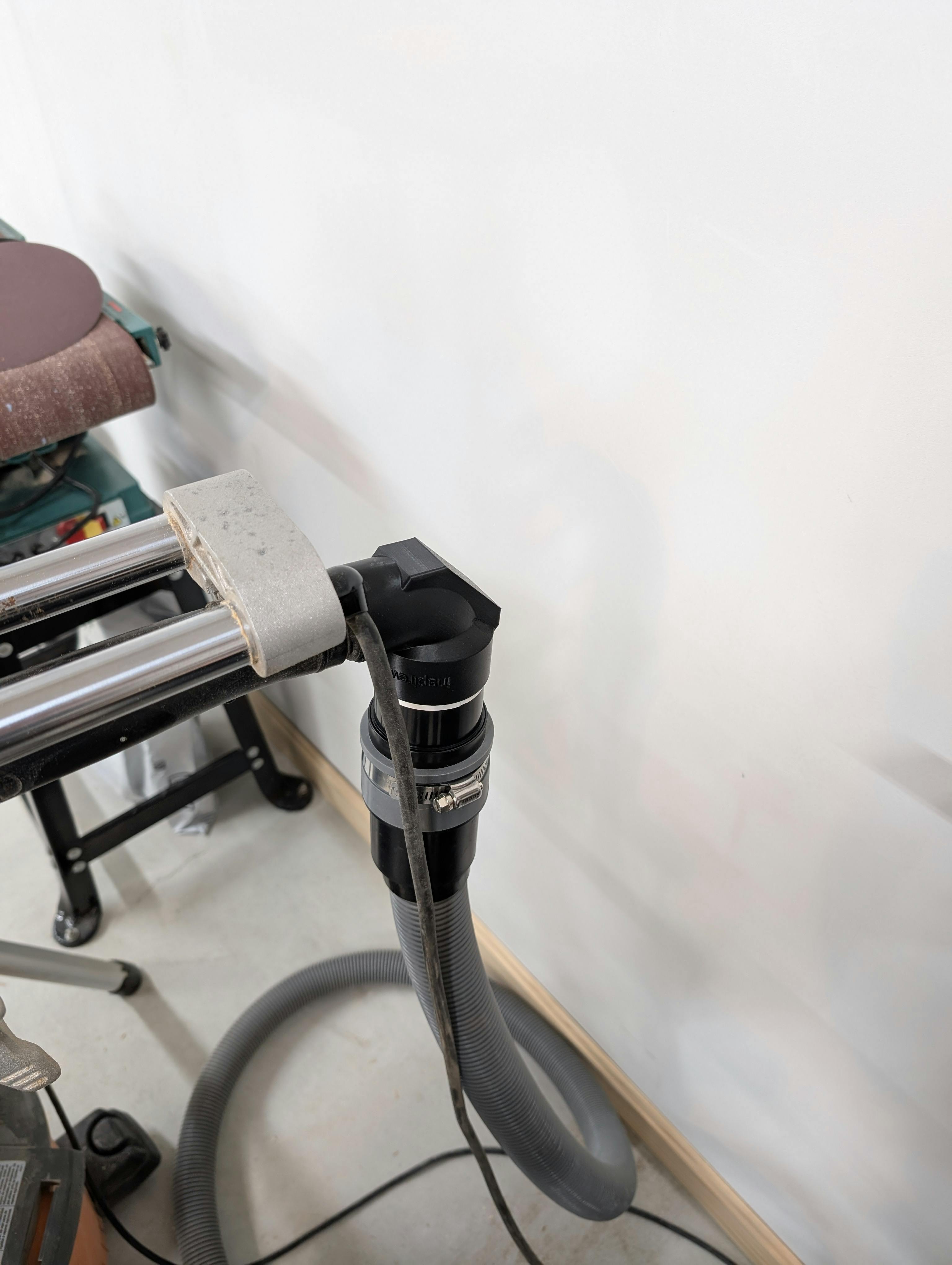

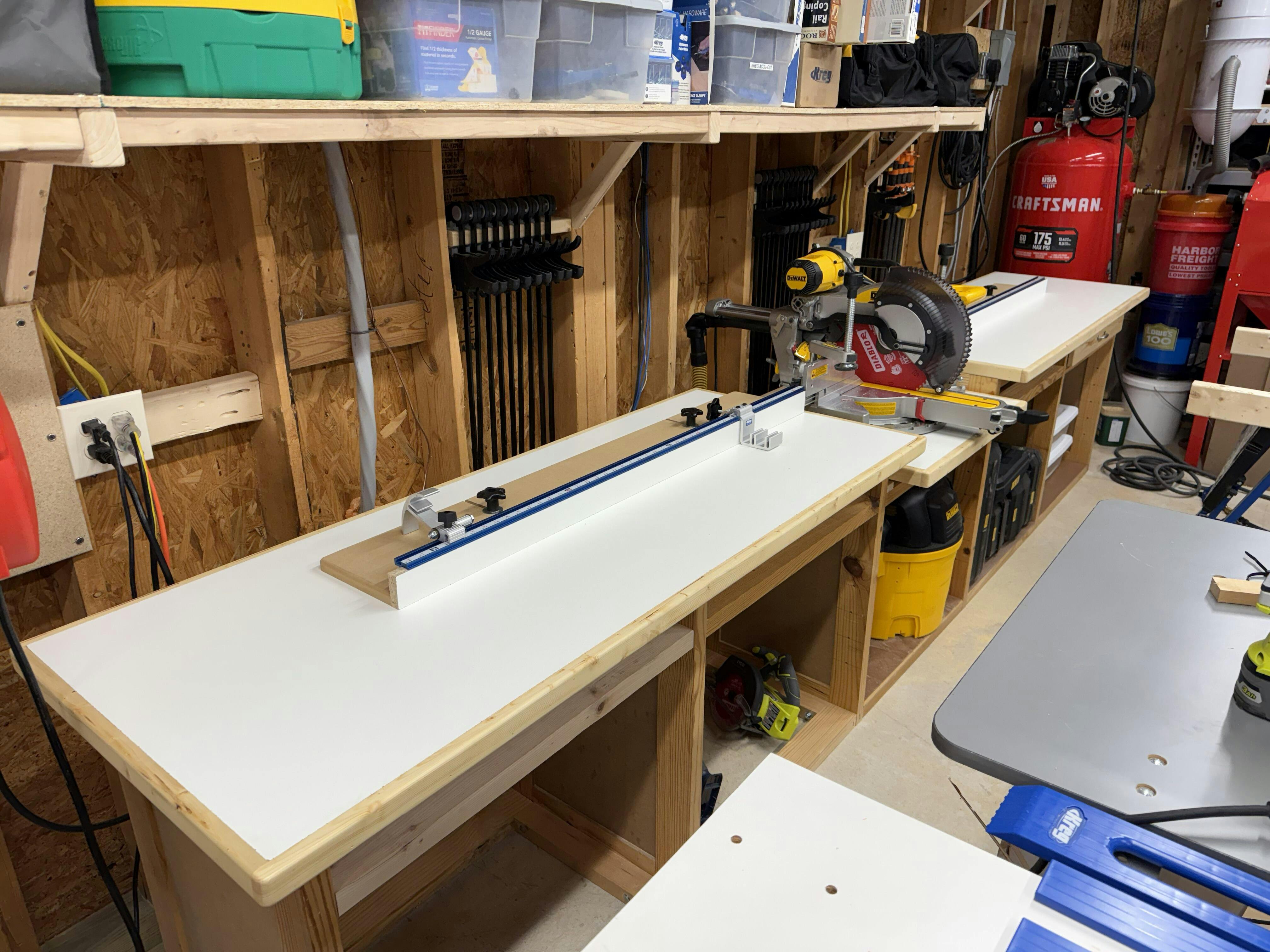

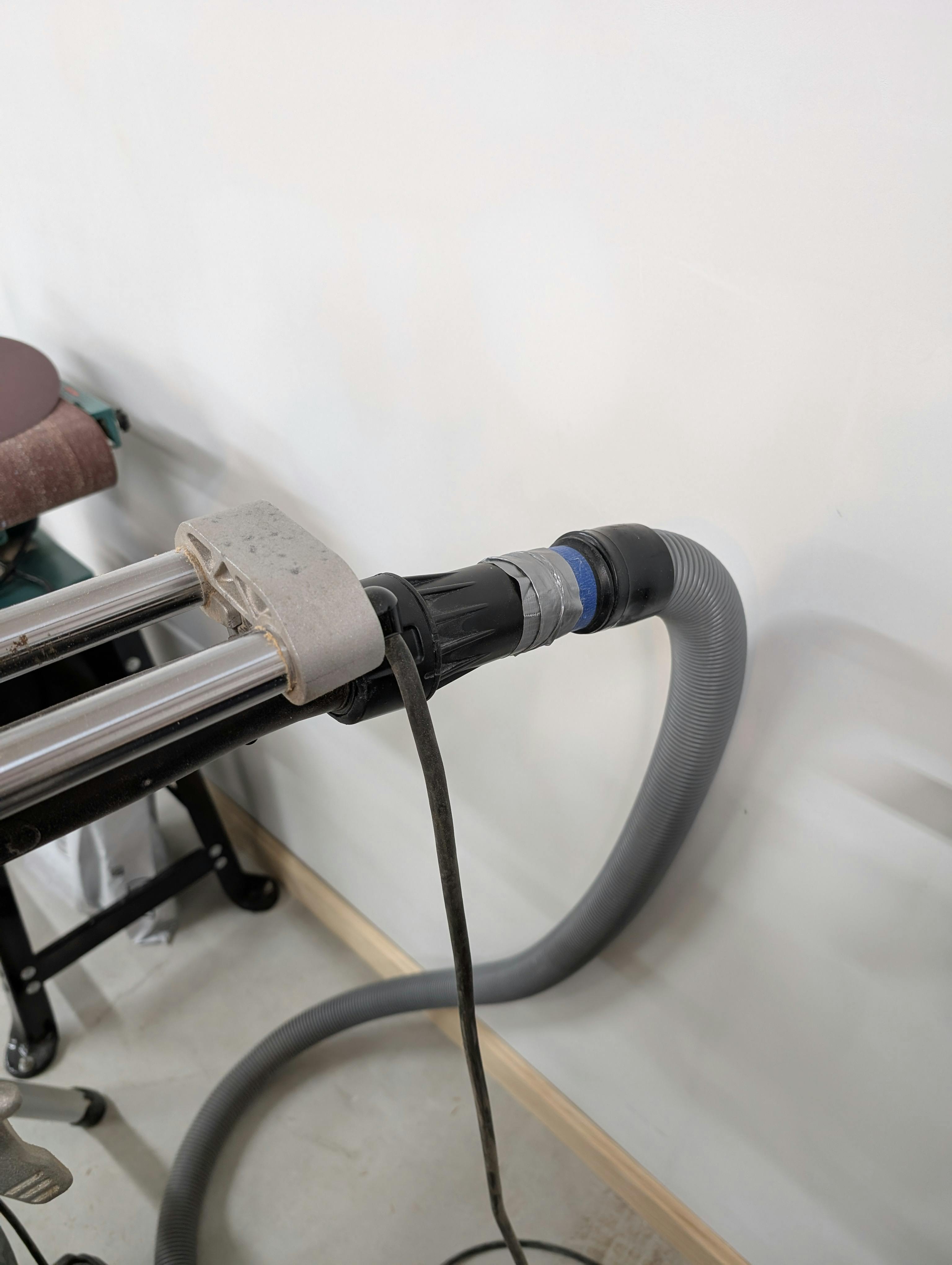

I'd been scouring the market to try and find a good solution to get my Miter Saw closer to the wall in my small shop, and this was PERFECT. The 90 degree elbow piece is sturdy but flexible enough to get a great fit, and I was able to scooch my saw much closer to the wall and it also relieved the pressure on my hoses which was super helpful as well. Jodee is also always super helpful and responsive for any customer service needs - Inspire Woodcraft is the best, thanks again!
Works perfectly. This is exactly what I was looking for to help cut down on dust.
Fit perfectly. Works great.
When I originally received the DWS715 Throat Plate, the plastic insert snapped in half when I was cutting the zero-clearance slot. Inspire Woodcraft immediately sent me a replacement, which shows are strongly they back up their product.
The first insert that snapped was cut with the default 32-Tooth blade that came with the saw. The replacement insert was cut with a 80-tooth Diablo blade. Both cuts were completed with a sacrifical piece of wood on top. Can't confirm the nmber of teeth had anything to do with it, but it did seem to cut better.

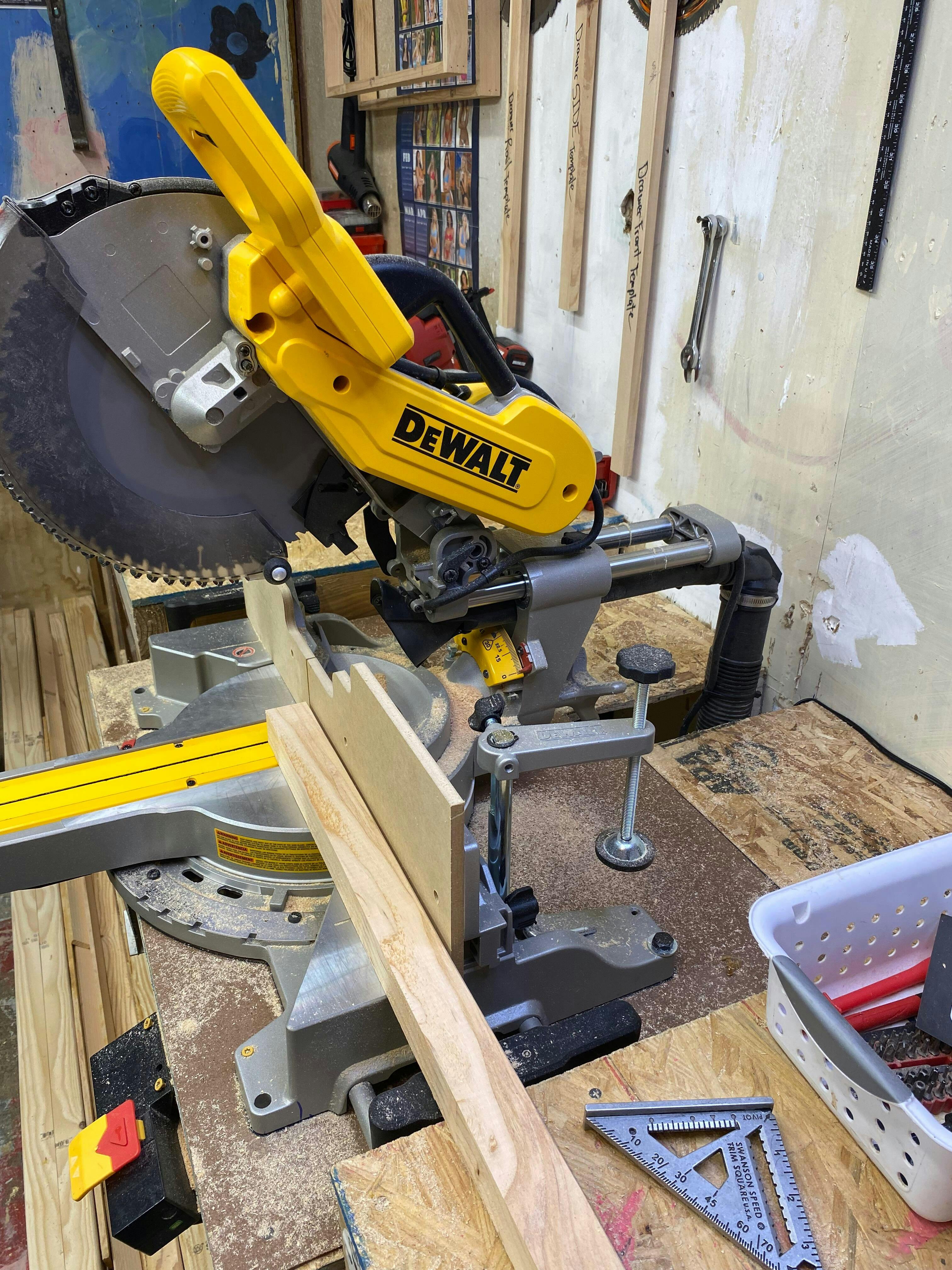

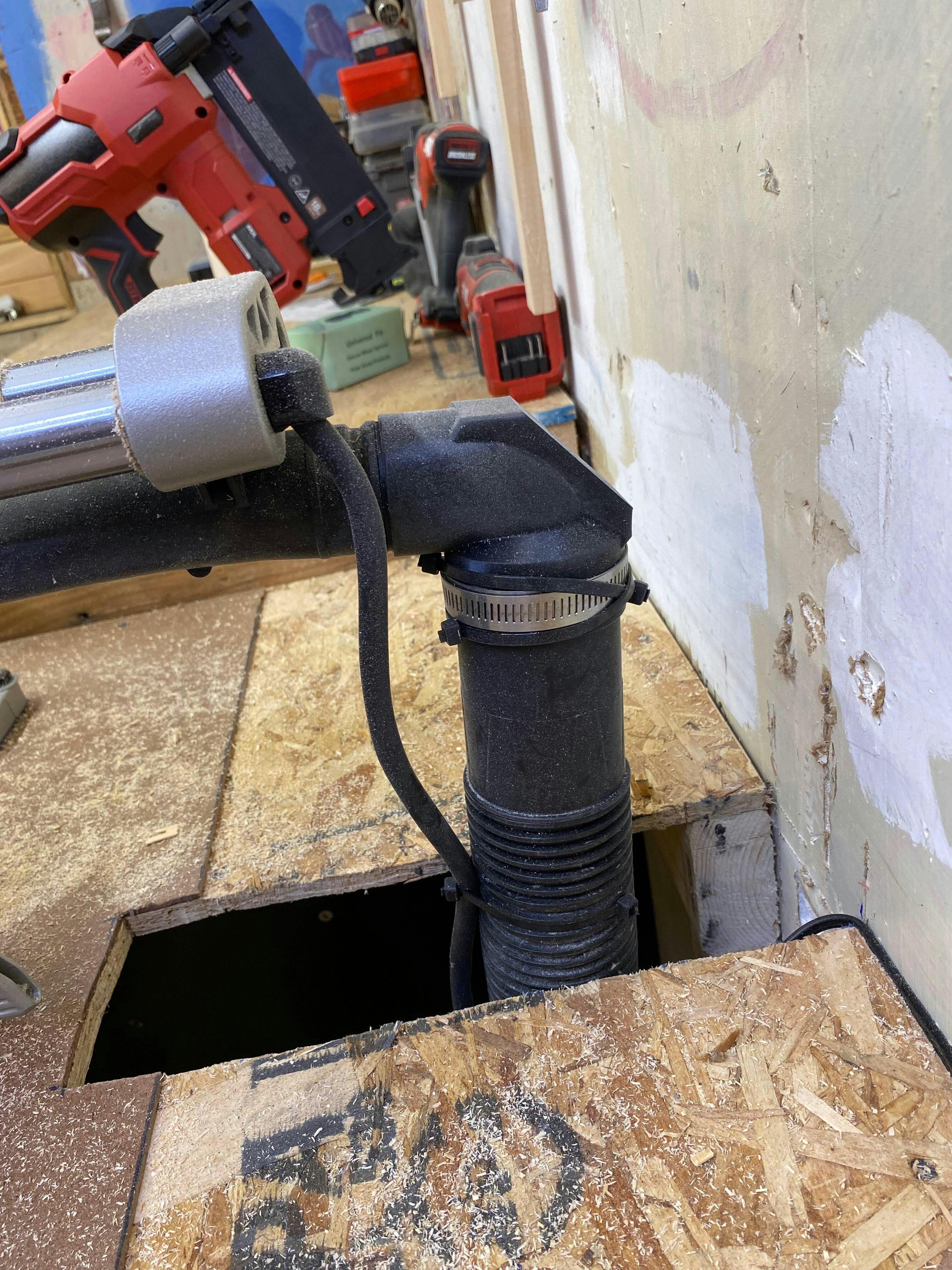

Installed on my DeWalt DWS780 miter saw. I was able to relocate my miter saw station closer to the wall by 6 inches, which is a big deal in a small workspace. Everything fit perfectly with stock DeWalt saw and hose. The setup looks well-designed and professional. I'm delighted with the fit, the functionality and the gain in shop space. Great product!
