Bosch GCM12SD/GCM12GDL Dust Collection Throat Plate

Bosch GCM12SD/GCM12GDL Dust Collection Throat Plate

Regular price $62.00 USD
Regular price Sale price $62.00 USD
Sale Sold out

No matter how much better your aftermarket miter saw dust collection works compared to the factory setup, it does nothing to collect the debris that gets forced below the saw's table.

So, where does all that debris go?

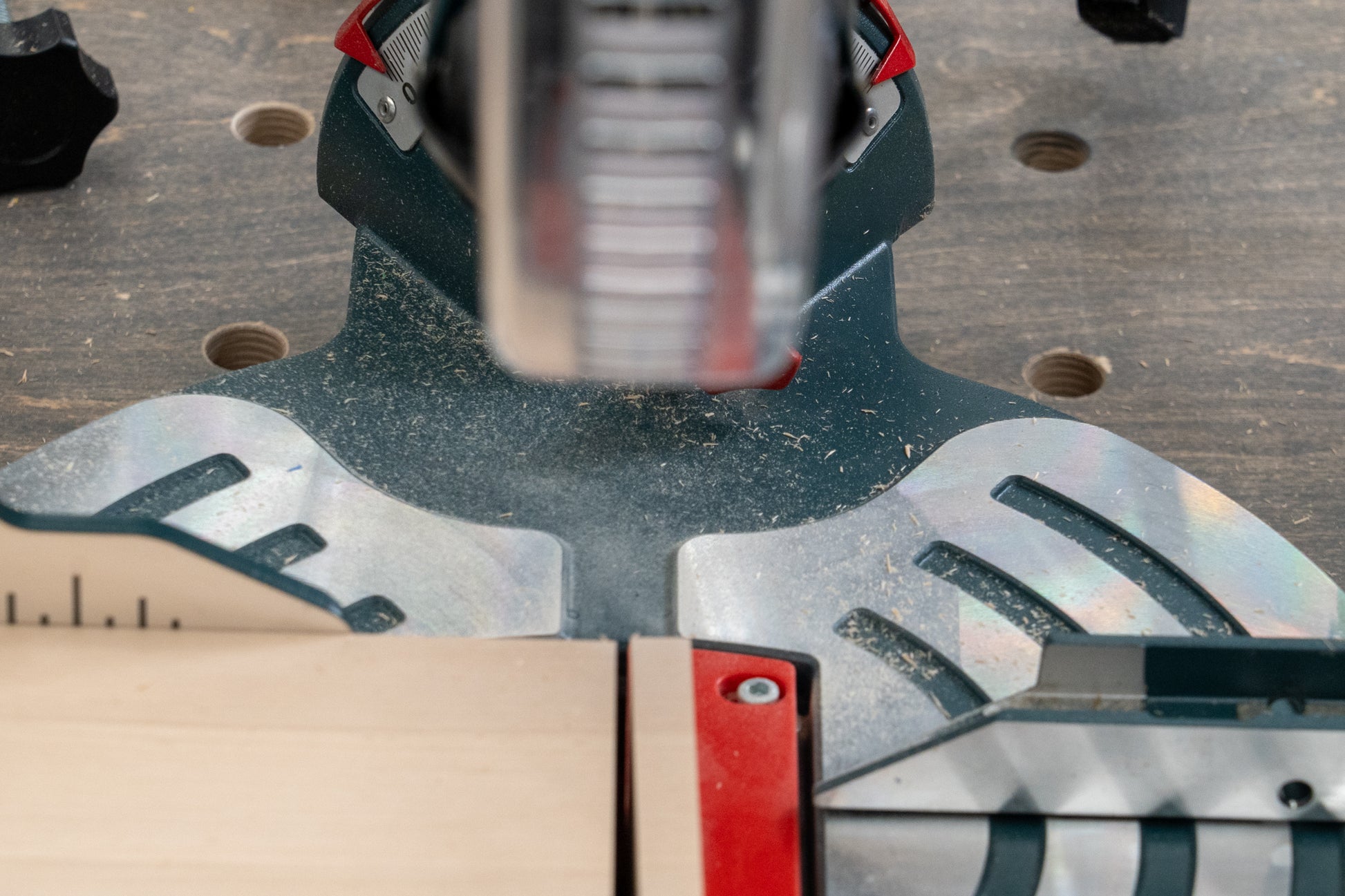

In the case of the Bosch GCM12SD/GDL Axial Glide, a surprising majority of it gets ejected BEHIND the collector via the throat plate. This is especially true when cutting wide material, since the collector moves with the saw blade, further away from the back of the saw where the dust is ejected. In fact, depending on the size of the material you're cutting, so much dust escapes through the rear of the throat plate that it may seem like your aftermarket dust collection isn't working that great to begin with.

Enter the Dust Collection Throat Plate for the Bosch GCM12SD/GDL Axial Glide!

Watch this QUICK DEMO & INSTALL!

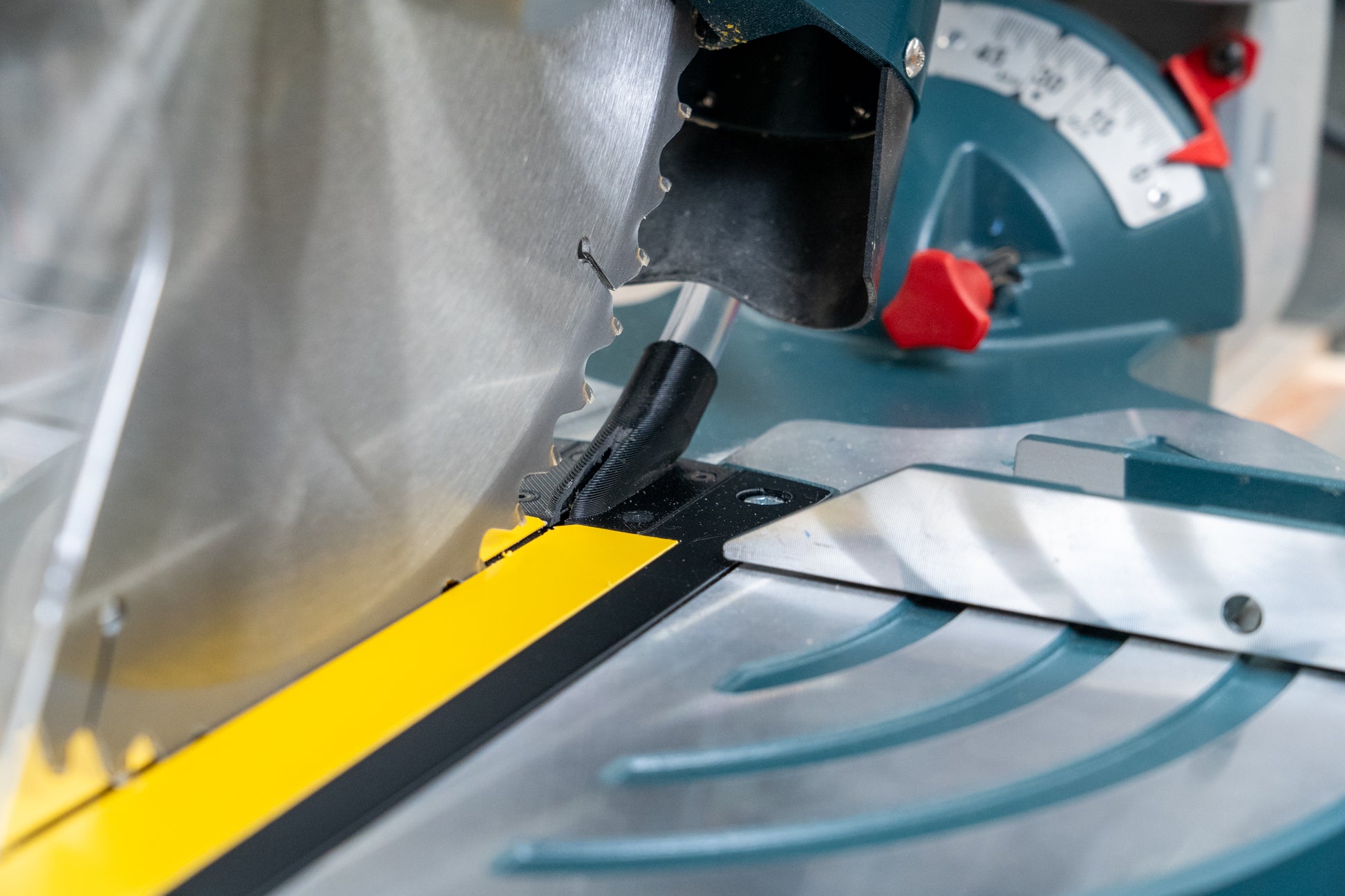

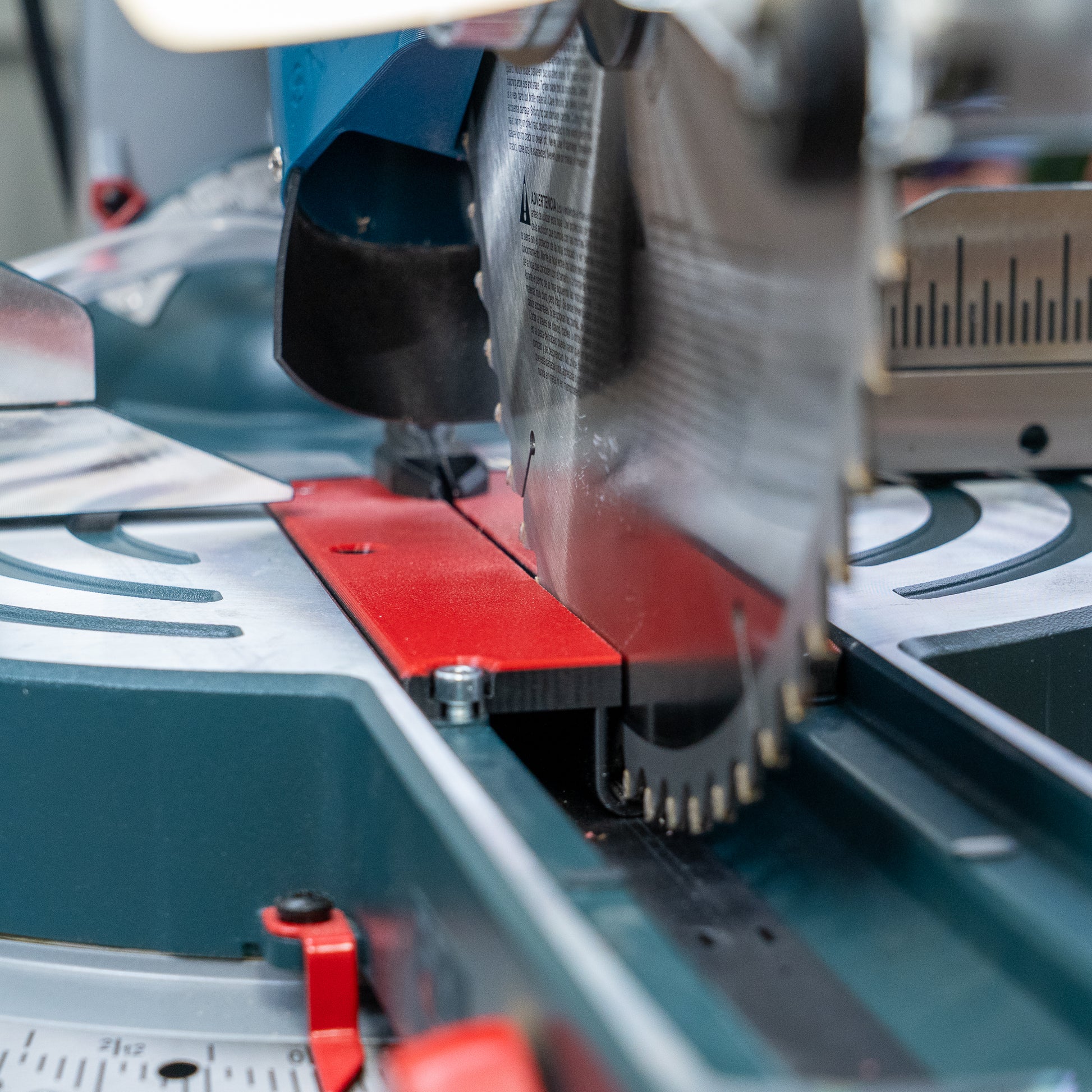

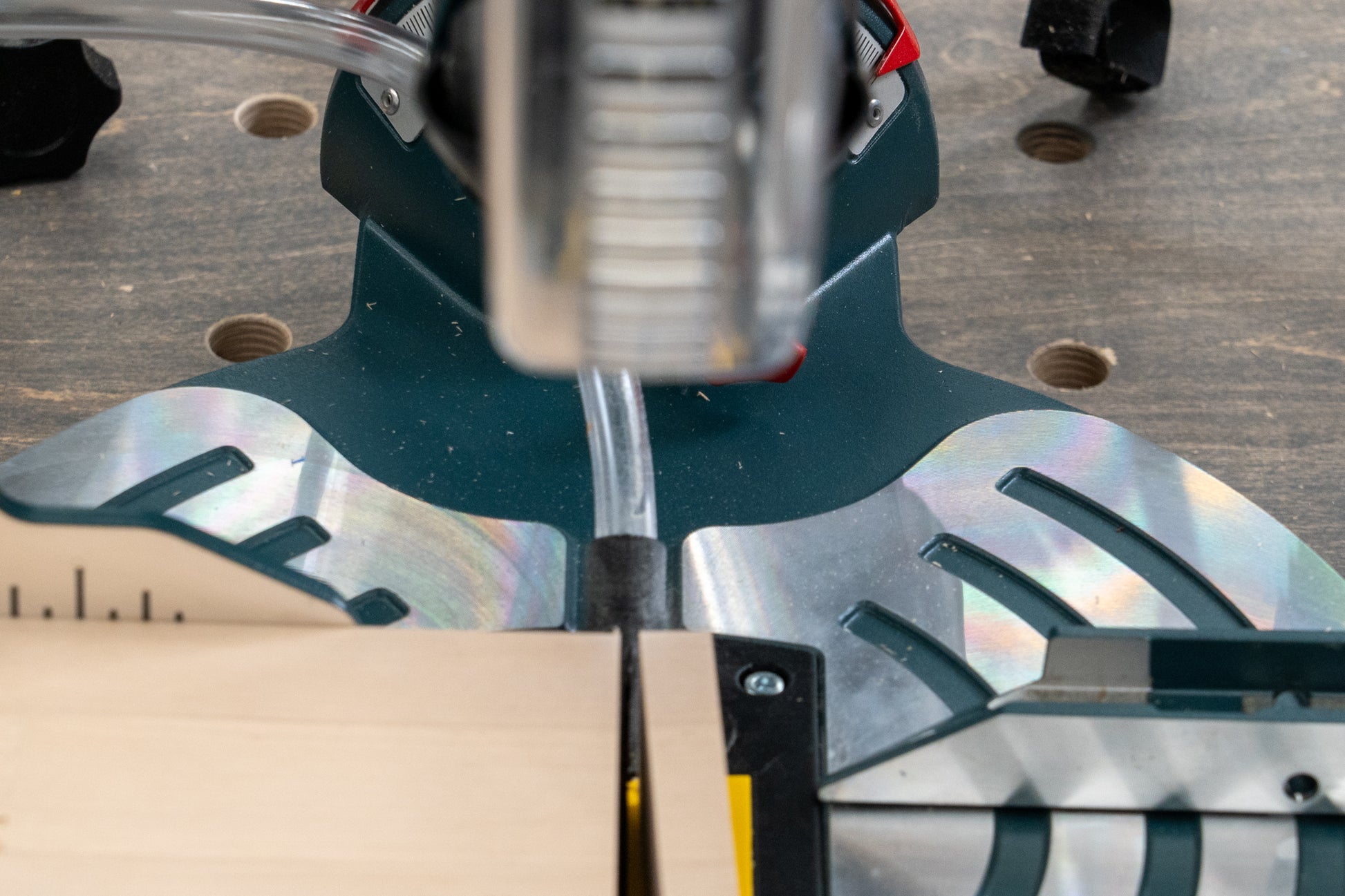

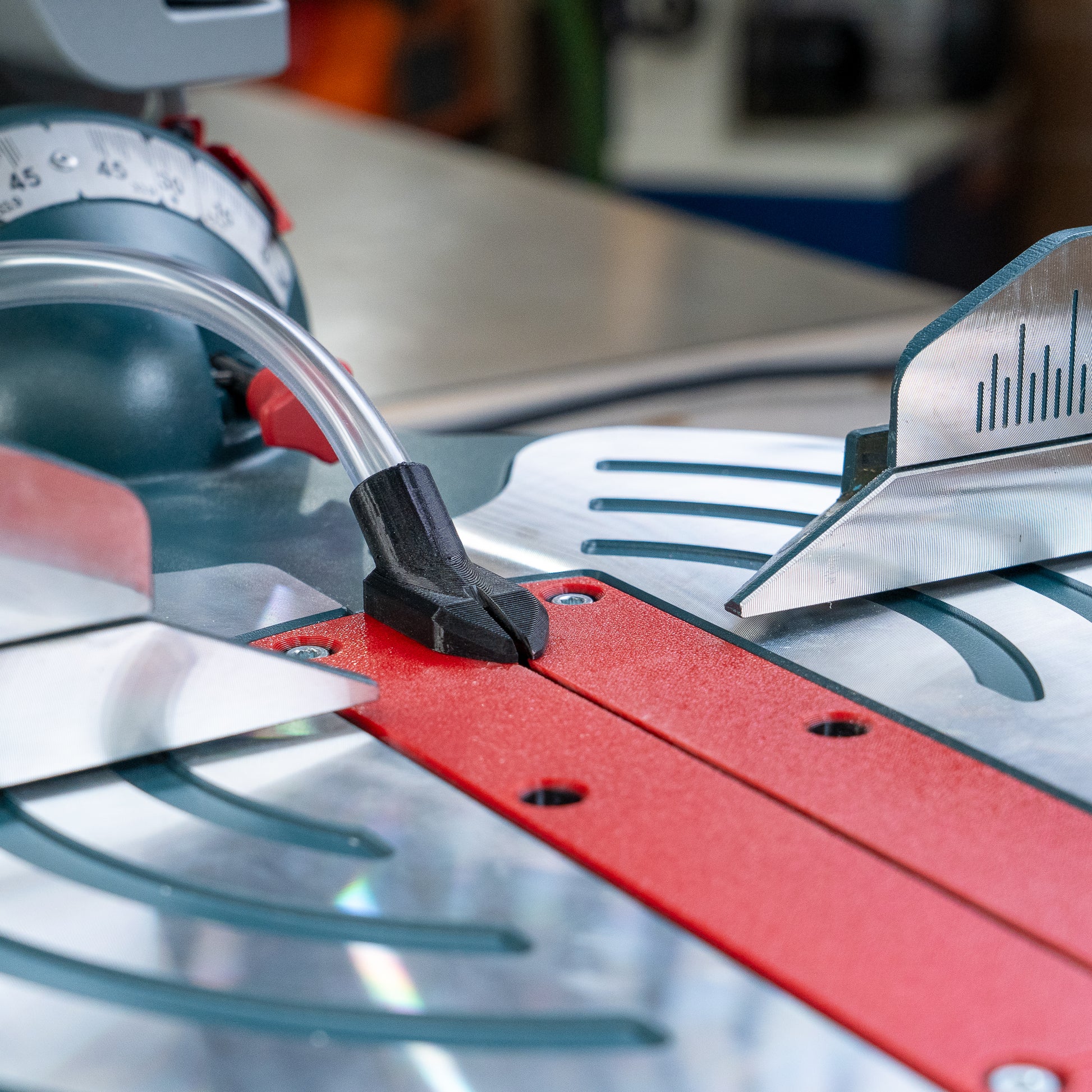

This replacement throat plate has a built-in shroud that surrounds the blade under the table, guiding all the debris to the rear of the saw. And once there, a specially designed vacuum port sucks it all away via a clear vinyl tube connected to your vacuum or extractor.

It is meant to be used in tandem with aftermarket dust collection units that use a 1-5/8" outside diameter hose cuff. And to make it even better, it also uses replaceable, sticky-back, PVC tape for a zero clearance insert to provide you with safe, clean cuts.

WATCH THIS VIDEO TO SEE IT ACTION AND SEE HOW TO INSTALL IT!

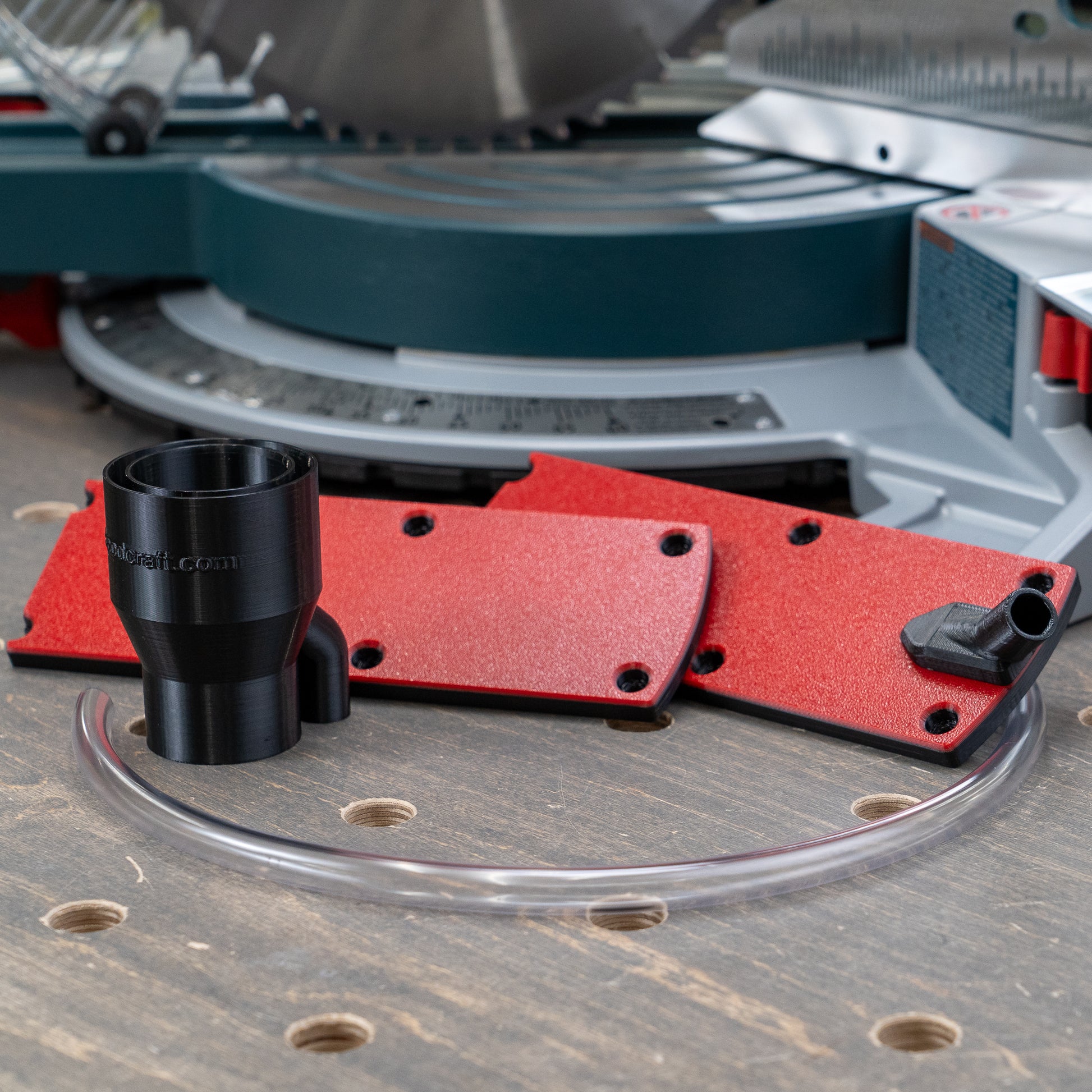

What's included?

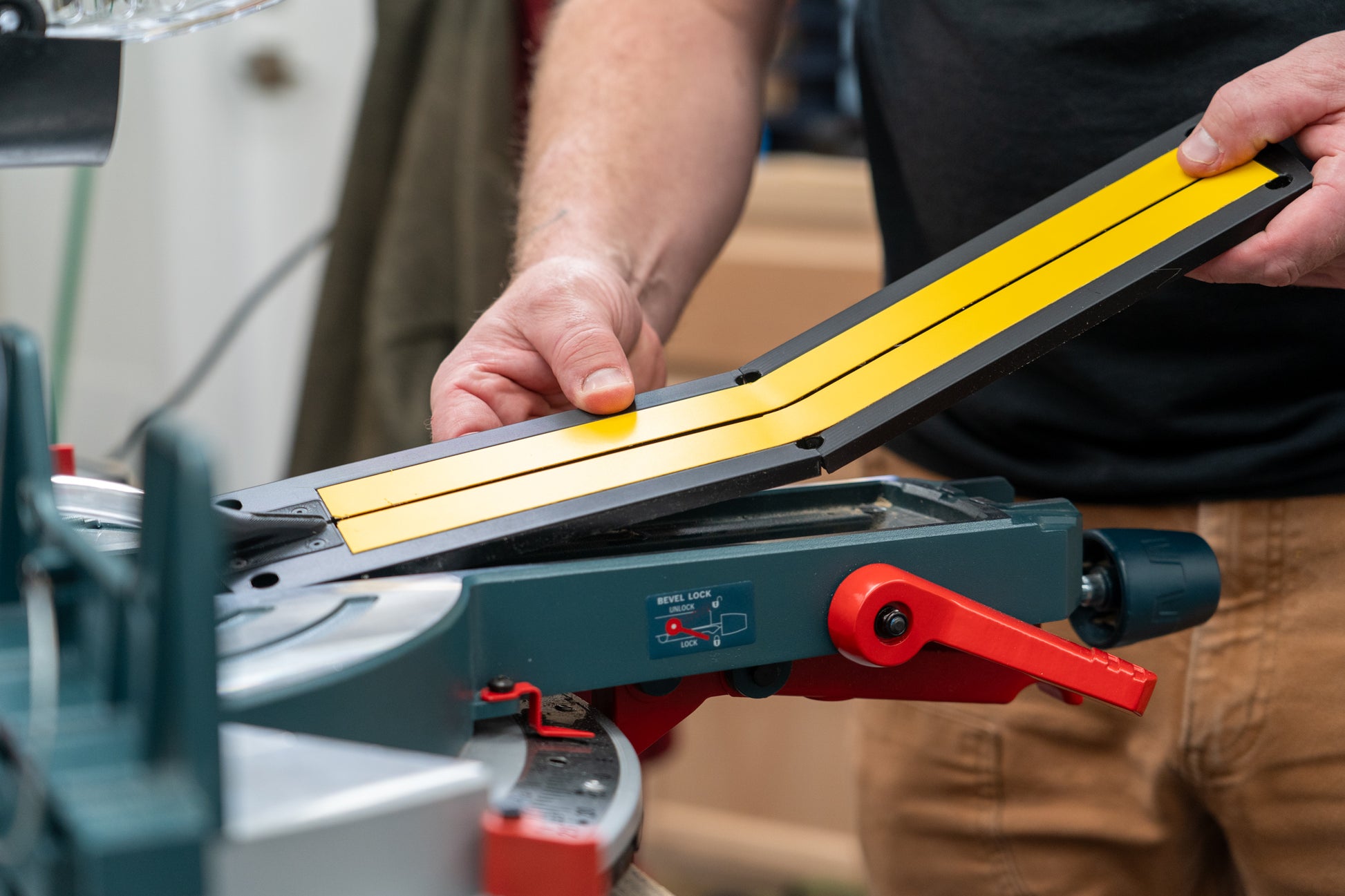

  • Throat Plate/Shroud. This will come as two pieces, a front section and a rear section. It replaces the factory throat plate and installs reusing the factory screws.

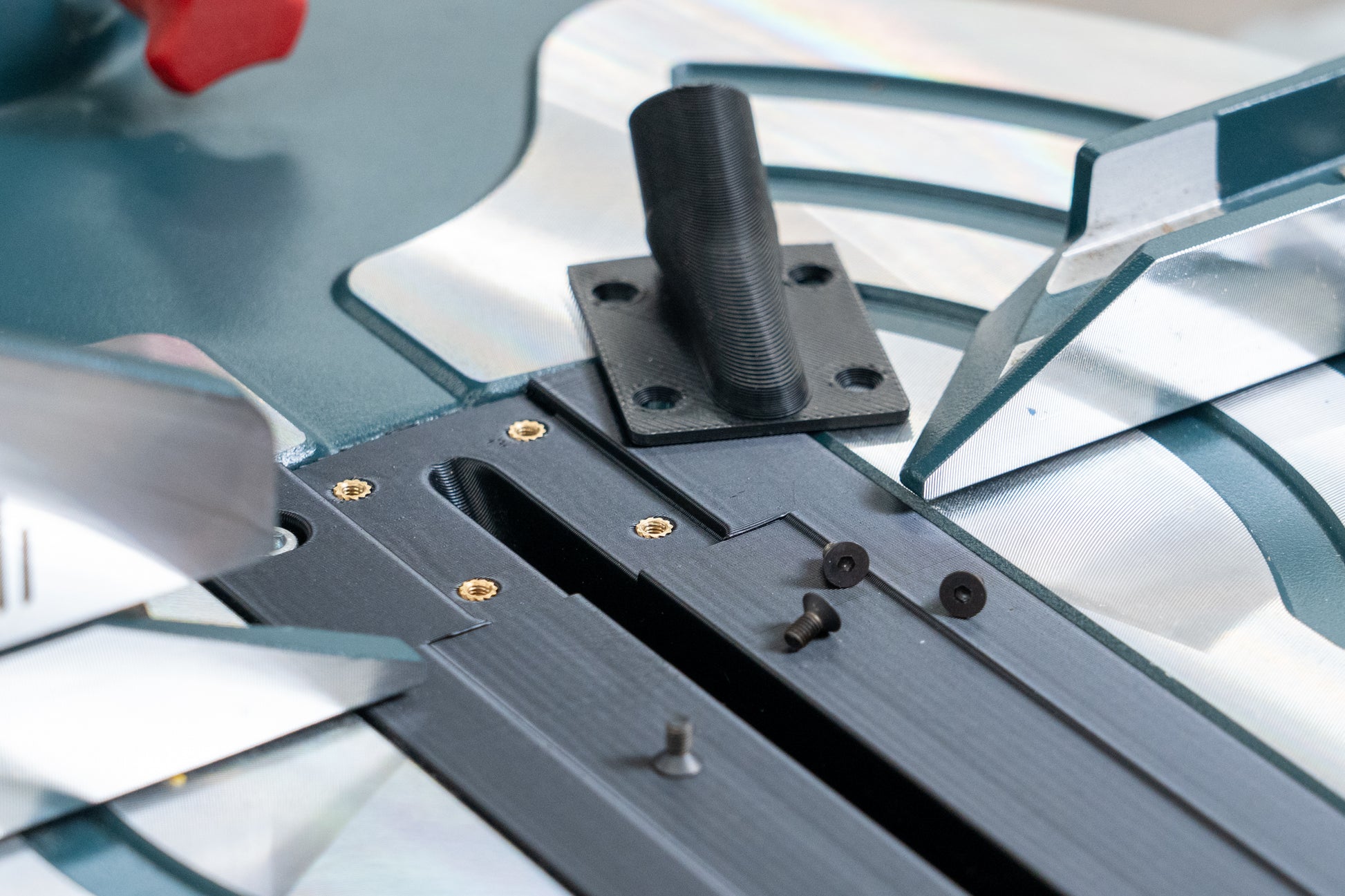

  • Throat Plate Vacuum port. This installs on the rear section of the throat plate with four small screws (included) and a 2mm hex (Allen) wrench (not included).
  • Clear Vinyl Hose. This is what carries the dust away. It connects the throat plate vacuum port to the vacuum adapter.

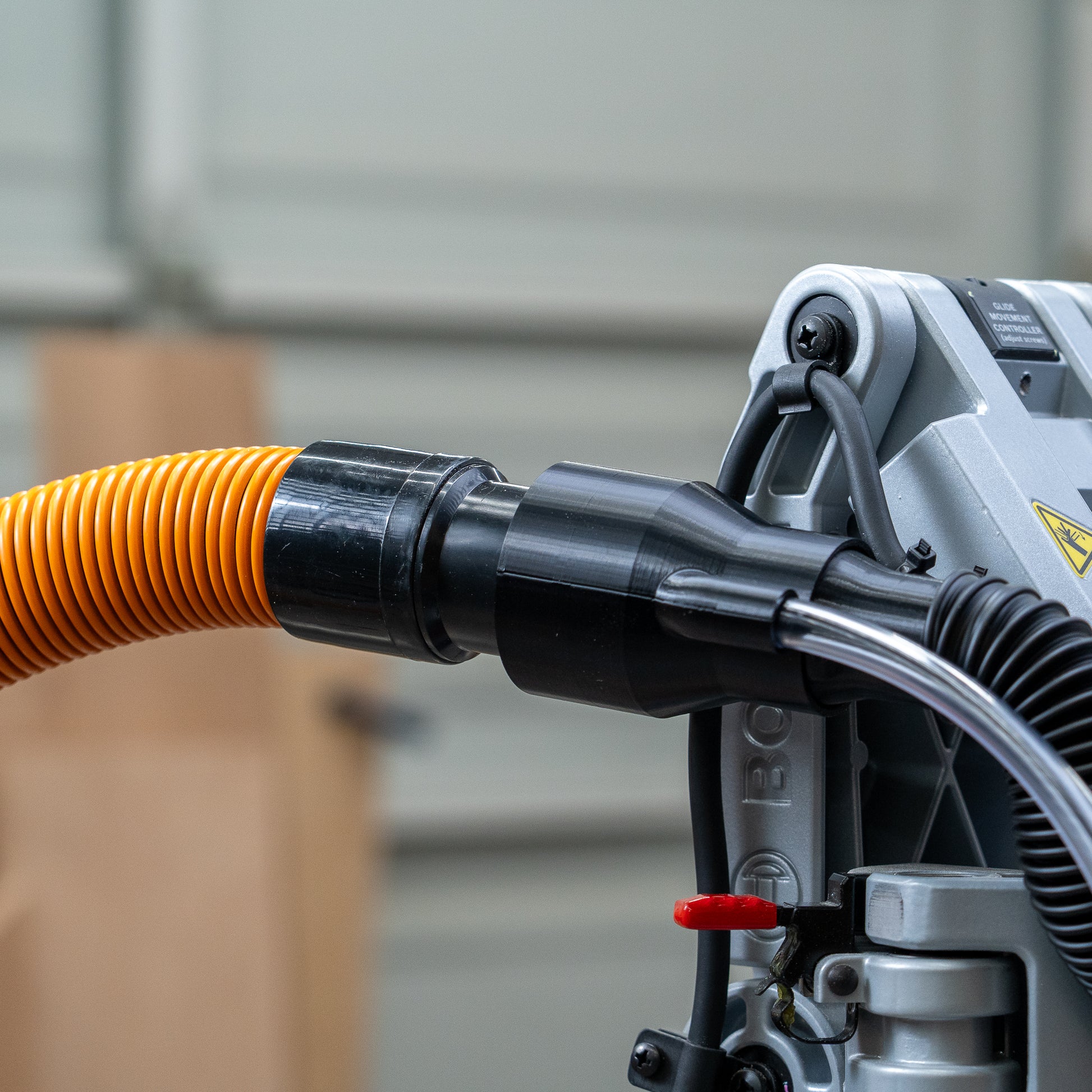

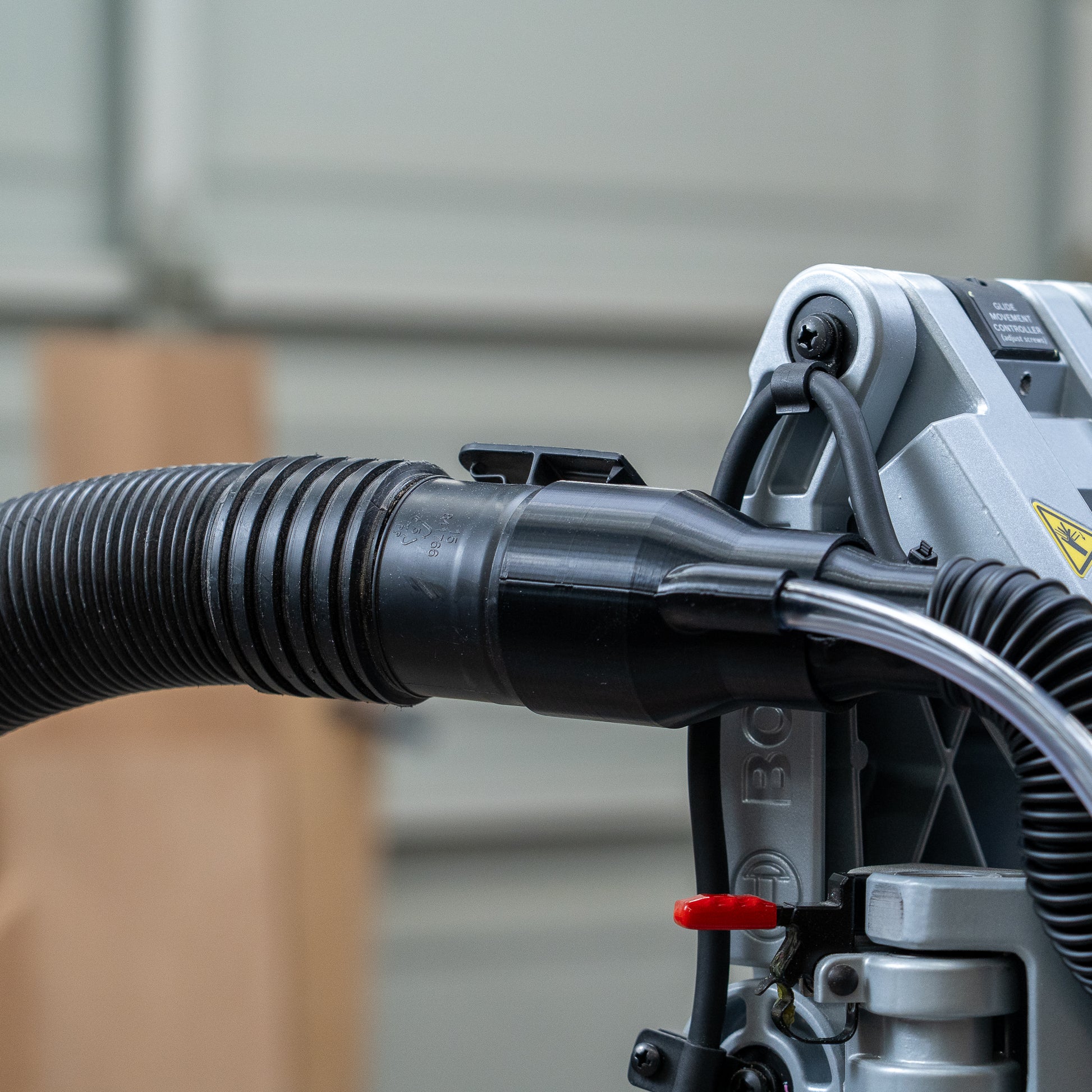

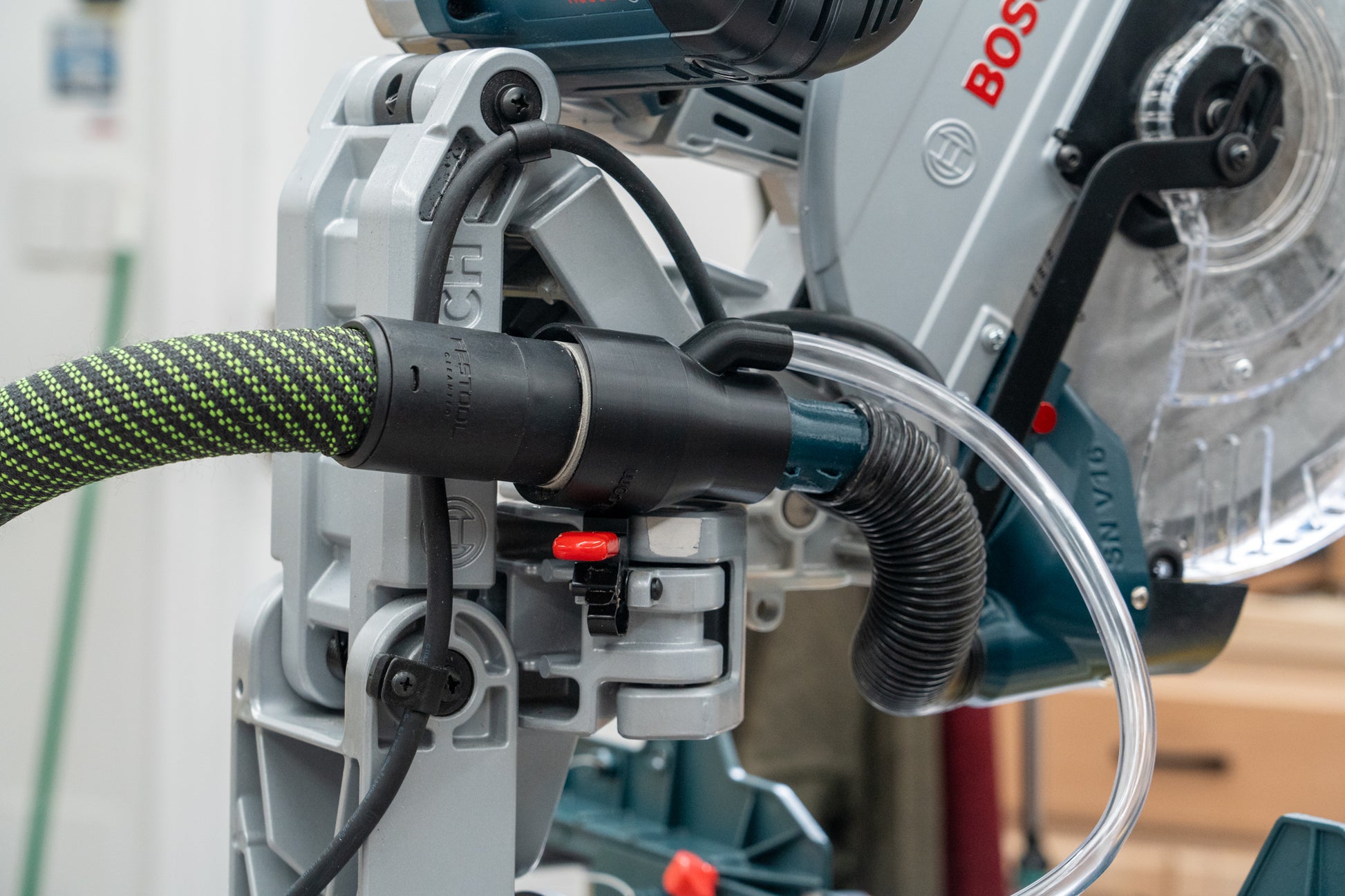

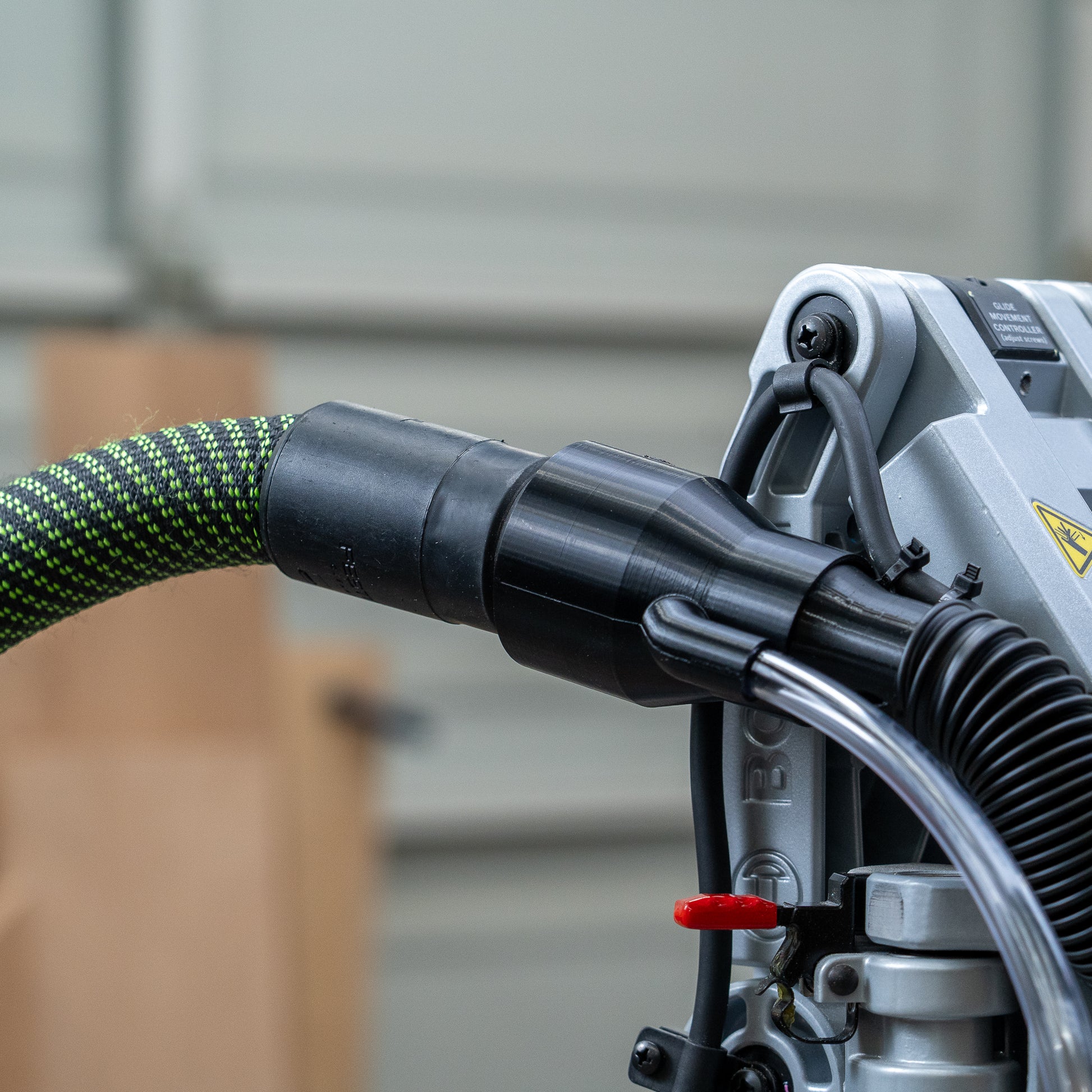

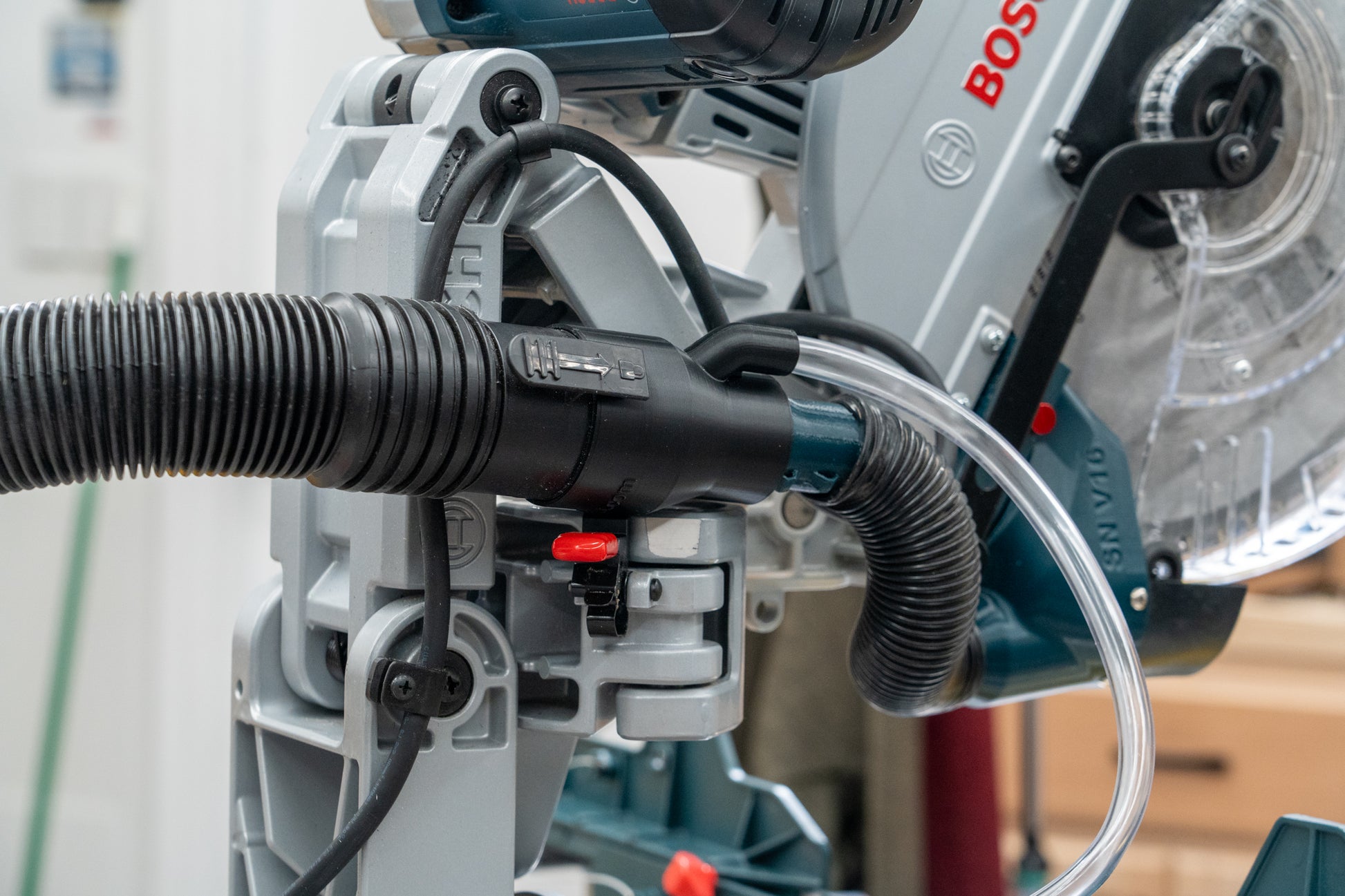

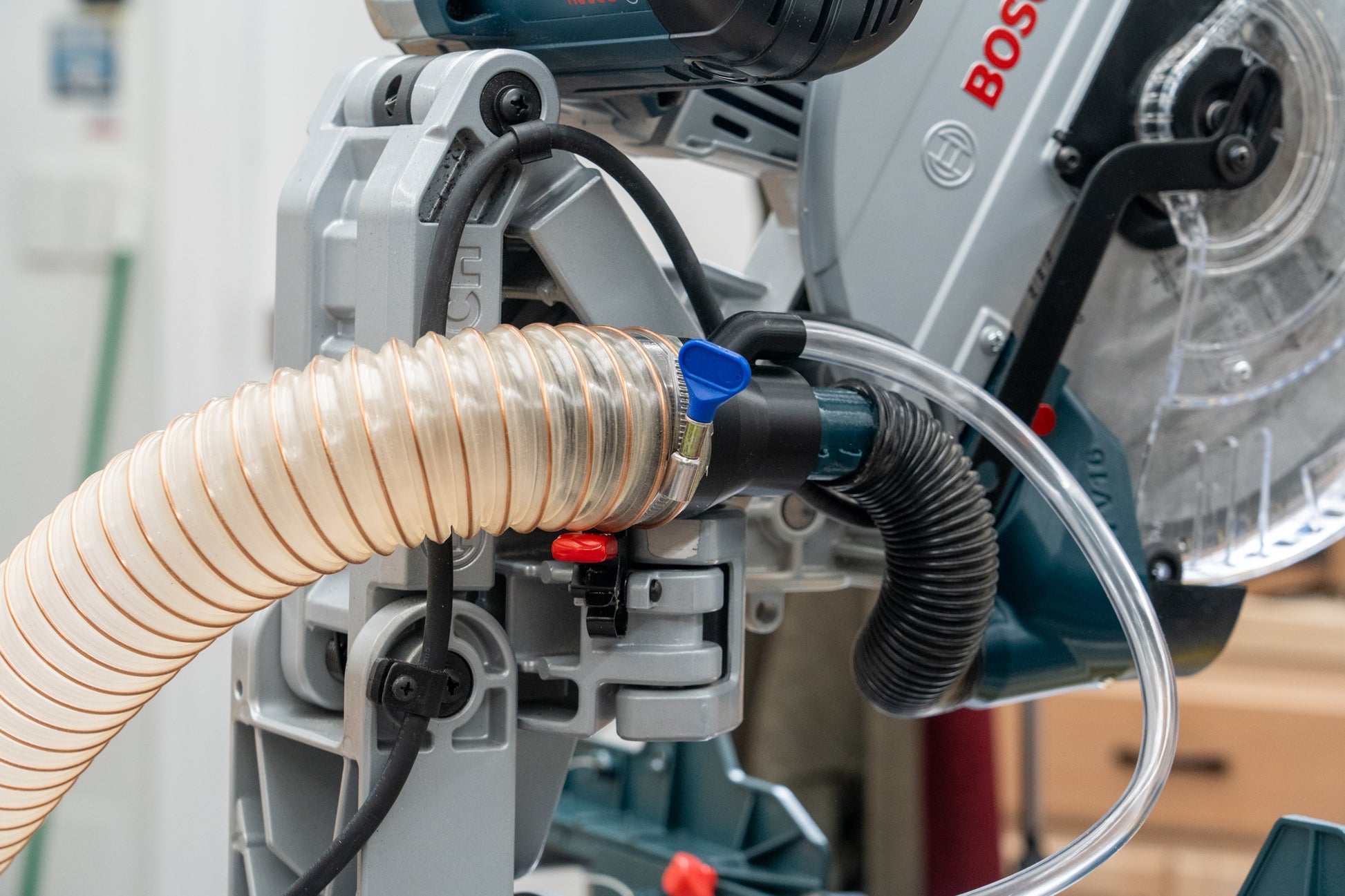

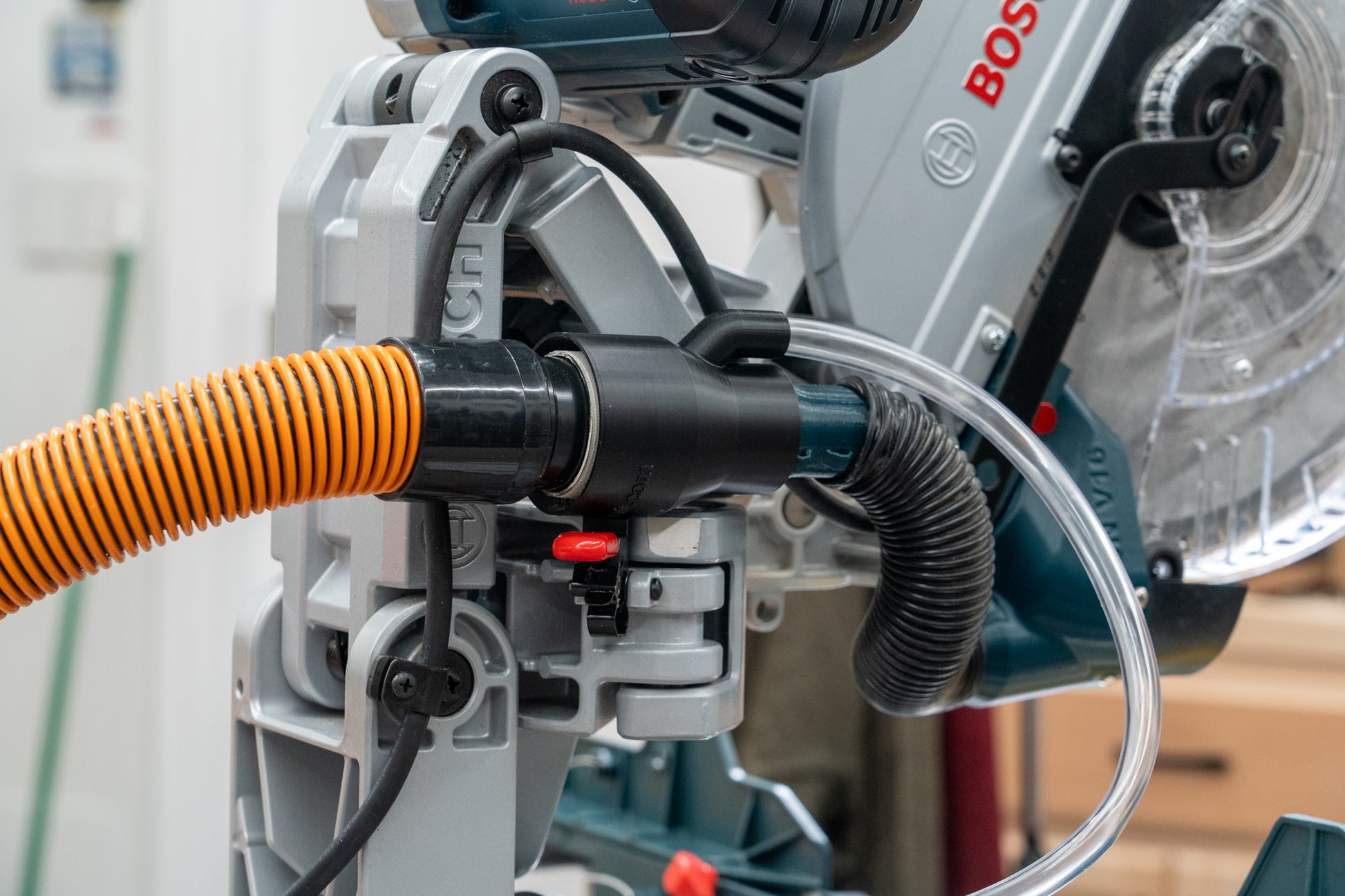

  • Vacuum Adapter. This is what allows everything to work together. On the vacuum side you can hook up to almost any extruder, shop vacuum or even a dust collector. It will accept 2-1/2" dust collection hose, 2-1/2" shop vacuum hose, 1-7/8 shop vacuum hose or 36mm Festool antistatic hose. On the tool side there are two ports. One port is to hook up the 1-5/8" hose cuff from your aftermarket behind-the-blade unit. The other port is sized to fit the supplied 1/2" outside diameter vinyl hose OR can be used with 5/8" inside diameter hose (not included or available from us). All fittings are tapered to provide a secure connection to a wide variety of brands of hoses, both new and old.

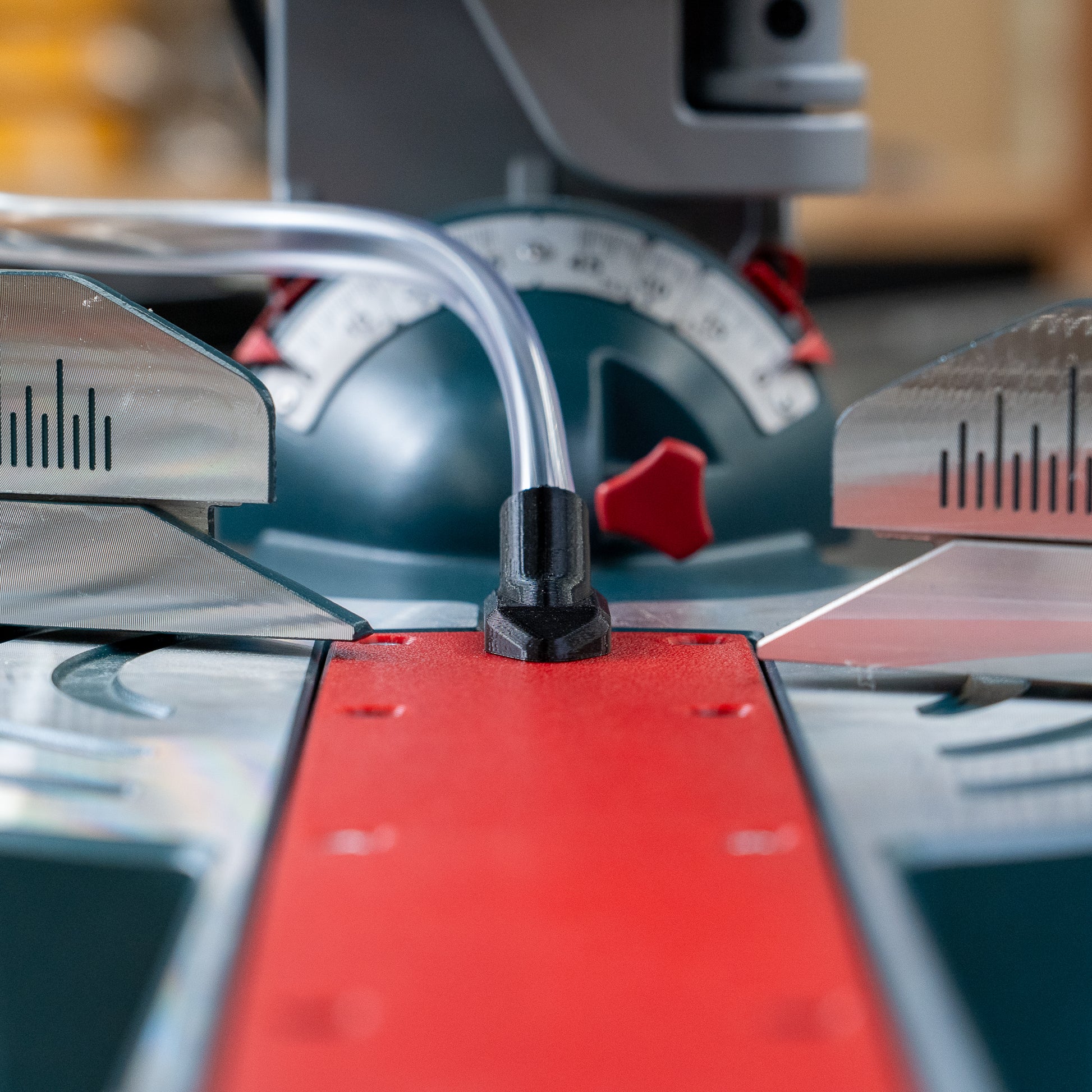

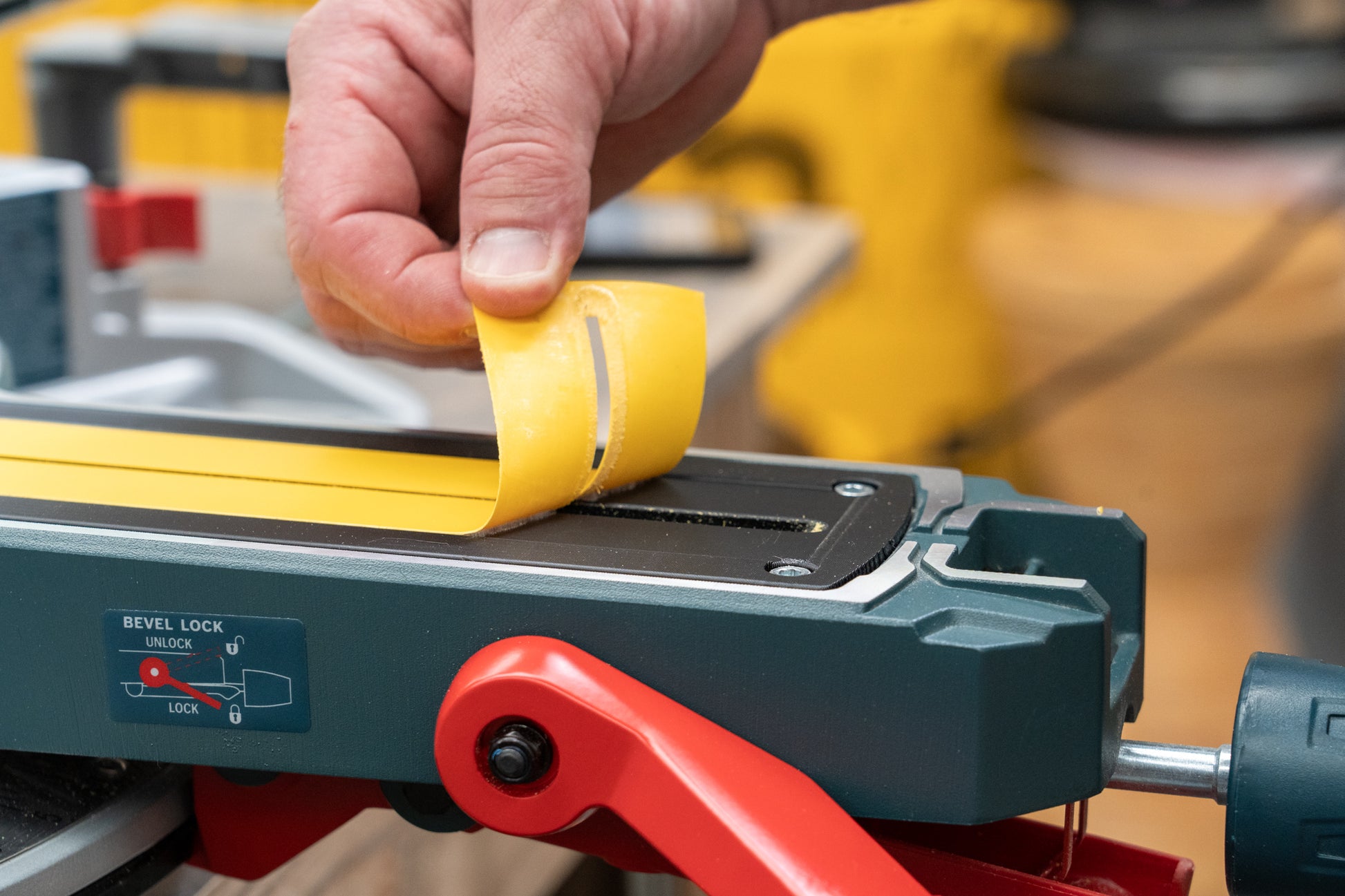

  • Zero Clearance Tape. This is what will give you the benefits of a zero clearance insert. It is sticky-backed and removable/replaceable, and the throat plate is recessed so that the zero-clearance tape will sit flush to the surface.

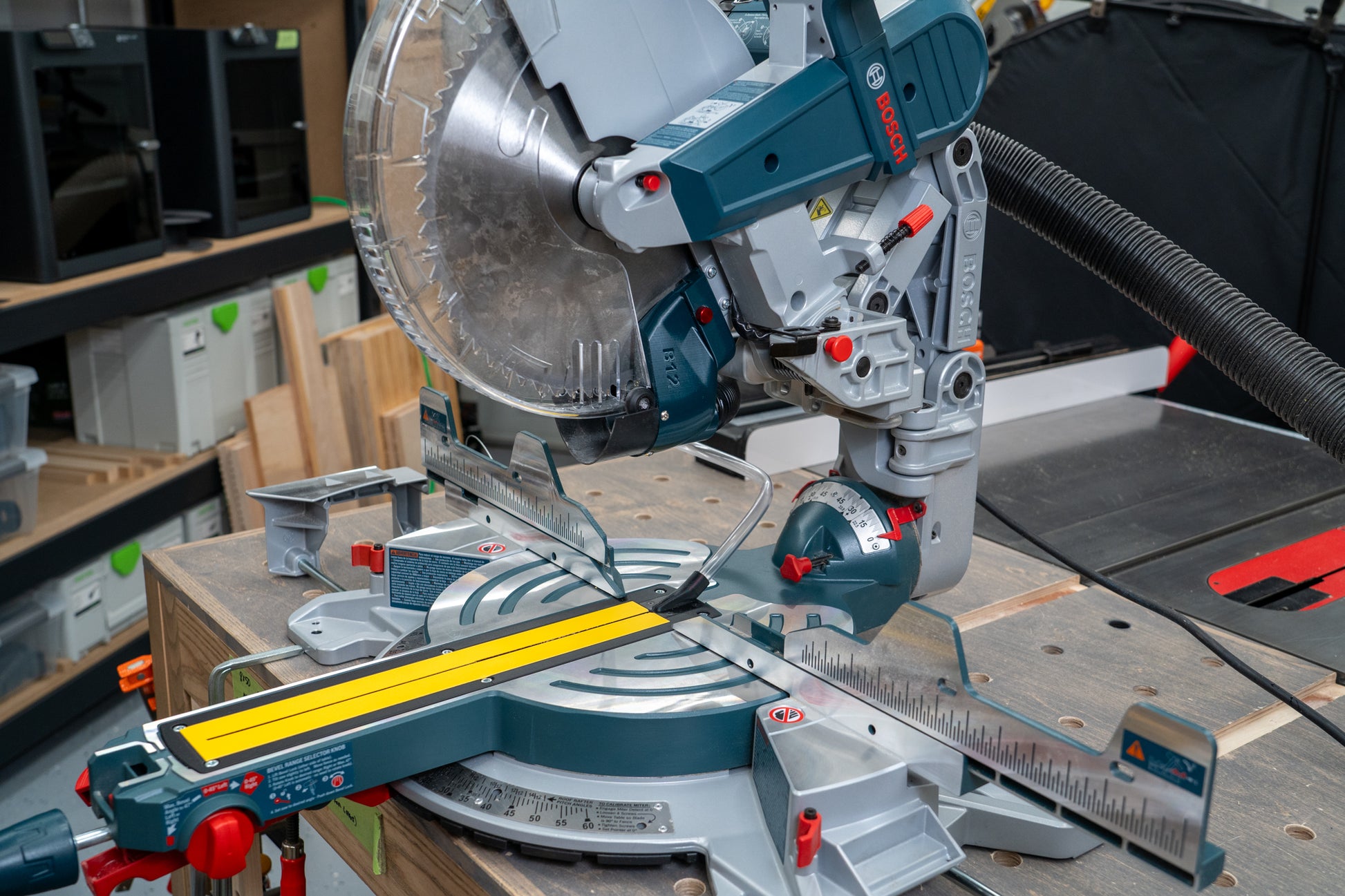

The color-matched unit mounted behind the blade shown in the photos is an aftermarket item from another manufacturer and will not be shipped with the Dust Collection Throat Plate!

NOT INTENDED FOR BEVEL CUTS! The throat plate and dust shroud are intended to be used with the blade at 90 degrees to the table. You can enjoy dust-free, quality cuts at any miter angle your saw was designed to make, but bevel cuts will destroy the throat plate and the vacuum port.

WORKS WITH THIN & FULL KERF BLADES! Designed with just the right amount of clearance to account with the flex that can happen when not pulling perfectly straight down and forward with the handle.

NOT GUARANTEED TO FIT ANY MODEL OTHER THAN THE BOSCH GCM12SD and GCM12GDL SLIDING COMPOUND MITER SAW!

This setup is intended to work with aftermarket dust collection systems that use a 1-5/8" outside diameter hose cuff (the piece that would be connected to a dust collector or vacuum hose). We cannot guarantee good results if just using the factory supplied dust shoot.

The throat plate sections, vacuum port, and vacuum adapter are 3D printed with PETG filament.

View full details

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
Kim Chishti
Awesome product

This is a really well thought out product, I remember watching Jodee’s videos as he was designing the original Dewalt products and wondered if he might tackle the Bosch. I am based in the UK and can state that the Bosch GCM12SD design works perfectly with the EU/UK version GCM12GDL. Ingeniously designed by a user for the user! Makes you wonder who these companies donemploy in their R&E departments. As ever, always happy to support the small businesses and help maintain Anglo-American relations in light of the current political climate!!! Many thanks for all your hard work Jodee, best wishes!!!KC

Kim!
Thank you so much for the feedback! It's always so helpful to hear from those with other models that we might not have in the States.
Much appreciated!
Jodee

M
Marc Ward

This guy is a genius!

D
Don

Unfortunately, I didn’t realize that I own the older style Bosch 12 inch. But I was able to slightly modify the throat plate and make it work. Highly recommend it does capture majority of the dust even if you’re cutting MDF highly recommended thank you, Don.

M
Mike Burke
Easy Install, fits great, definitely improves dust collection!

A nice upgrade to the 12” Bosch sliding miter saw.
